Akron Brass Deckmaster Electric Monitor

SKU AB-3440
(0) No Reviews yet
$10,673.99

Details

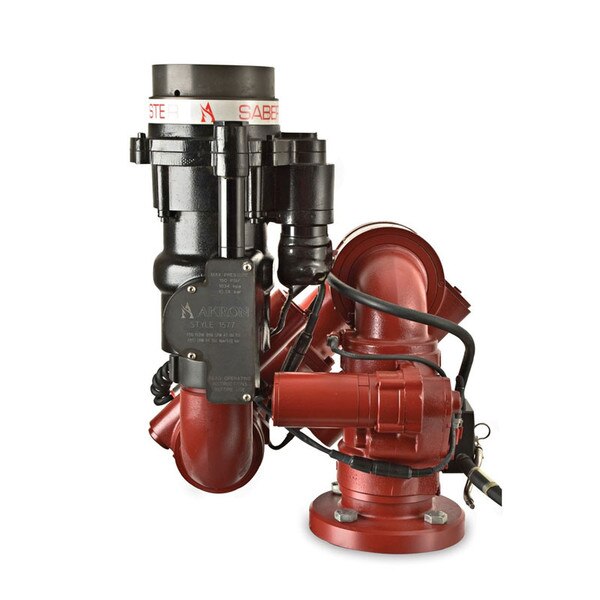

Akron Brass DeckMaster Electric Monitor

The DeckMaster Monitor is a technologically advanced, electrically controlled deck monitor with automated elevating capability. The unique design of the DeckMaster Monitor allows electric elevation and positioning 24" above the base of the flange for operation over obstructions with the push of a switch.

  • 344° horizontal rotation with adjustable stops
  • Vertical travel 90° above to 45° below horizontal
  • Manual override for horizontal, vertical and elevation control
  • Stow position set easily by the end user
  • Automatic drain for freeze protection
  • Diagnostic light for trouble-shooting
  • Connection for deployed indicator light
  • 12 24 volt - (24 Volt available on request)

STYLE
WEIGHT
LBS.
IN STOWED POSITIONINLETOUTLETFLOW
HEIGHTWEIGHTDEPTHGPMLPM
3440 * 68 14 1/2" 16 3/4" 17" 3" FL 2 1/2" NH 1250 4800
* Weight includes Style 5177 Nozzle

Specifications

  • Warranty: 5 Years
  • Type: Electrical
  • Material: Pyrolite
  • Brand: Deck Master
  • Width: 16.75"
  • Height: 14.5"
  • Depth: 17"
