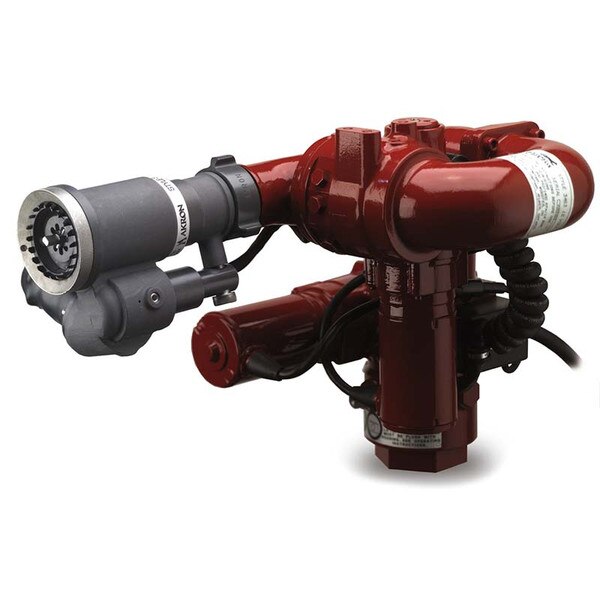

Akron Brass Firefox Electric Monitor
Details
FIREFOX ELECTRIC MONITOR
The FireFox™, an Electric Monitor from Akron®, is a technologically advanced remote controlled monitor with flows from 15 to 500 gpm (60 to 1900 lpm). The FireFox Monitor is designed to meet various water, foam, CAFS, and dry chemical needs. This versatile monitor can be used for wildland and crash truck turret applications, de-icing*, fixed site facility, arena protection and many other unique applications.
Includes:
3463 - FireFox Electric Monitor
Monitor Options: Must specify
12V Kit
The FireFox™, an Electric Monitor from Akron®, is a technologically advanced remote controlled monitor with flows from 15 to 500 gpm (60 to 1900 lpm). The FireFox Monitor is designed to meet various water, foam, CAFS, and dry chemical needs. This versatile monitor can be used for wildland and crash truck turret applications, de-icing*, fixed site facility, arena protection and many other unique applications.
Includes:
- 12V Monitor, Logic Box
- Low- or Mid-Flow Nozzle
- CAN Joystick with Trigger
- 2” (52 mm) Electric Valve and Quick Disconnect.
3463 - FireFox Electric Monitor
- 320° horizontal travel with adjustable stops at +/- 90°
- 135° vertical travel (+90° to –45°) with adjustable stops at +45° and –20°
Monitor Options: Must specify
- Automatic Oscillation
- Automatic Stow
- Remote 2" or 2 1/2" Electric Valve
- 12 or 24 volt (24 volt CE approved)
12V Kit
- Logic Box
- Low Flow Nozzle
- Joystick for Valve and Harness
- 2" Electric Valve and Quick Disconnect
- 12V Monitor and Logic Box
STYLE | WEIGHT LBS. | IN STOWED POSITION | INLET | OUTLET | FLOW | |||
HEIGHT | WEIGHT | DEPTH | GPM | LPM | ||||
3463 | 31 | 11 3/4" | 11" | 11 1/2" | 2" or 2 1/2" NPT | 1 1/2" or 2 1/2" NH | 500 | 1800 |
**Weight includes Nozzle |
LOW FLOW | GPM | 30 | 60 | 95 | 125 |
LPM | 115 | 230 | 360 | 475 | |
MEDIUM FLOW | GPM | 125 | 175 | 250 | 350 |
LPM | 475 | 660 | 950 | 1325 | |
HIGH FLOW | GPM | 350 | 400 | 450 | 500 |
LPM | 1325 | 1525 | 1700 | 1800 |
Specifications
- Weight: 25 lbs.
- Type: Electrical
- Material: Pyrolite
- Brand: Fire Fox
- Width: 11"
- Height: 11 3/4"
- Depth: 11 1/2"
- Inlet: 2" NPT, 2 1/2" NPT, 1 1/2" FL, 3" FL
- Outlet: 1 1/2" NH, 2 1/2" NH
- Volts: 24V
