Akron Brass Revolution Intake Valve

(0) No Reviews yet
$1,997.99 to $2,083.99
SKU: AB-7983
$1,997.99 to $2,083.99

Female Thread 1

Inlet

Please select options before adding to cart

Details

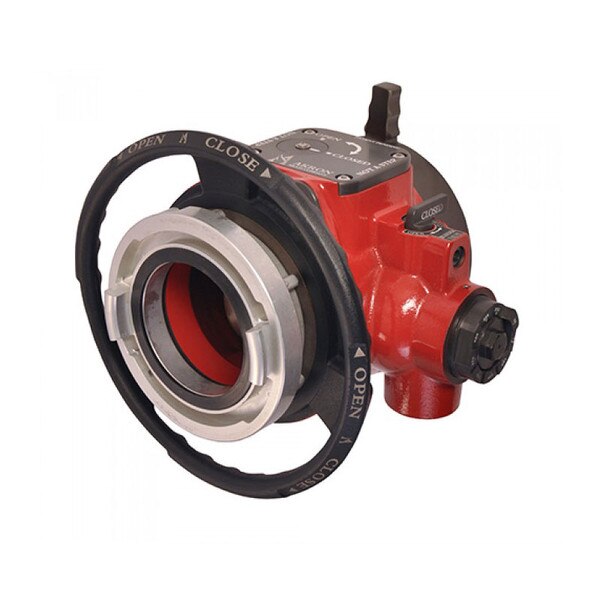

Akron Brass Revolution Intake Valve (Straight Inlet)

Featuring a unique patent-pending handwheel design, the Revolution provides the operator more control and leverage for a smooth and easy operation. This revolutionary valve is constructed of corrosion-resistant, hard-anodized aluminum and stainless steel with a powder coated interior and exterior finish for superior corrosion protection.

Compact Design
Its compact design saves valuable space on your pump panel. The Revolutionary handwheel design hugs tightly to the valve body eliminating possible interference with surrounding discharges and equipment on the pump panel.

The Revolution has all of the standard features you would expect from an intake valve with flows capable up to 2000 gpm (7600 lpm) making it ideal for the most demanding apparatus intake applications.

Features:
  • Robust, integrated Pyrolite patent-pending handwheel for easy operation
  • Critical pump side waterway components constructed of non-corrosive stainless steel
  • Durable, powder coated interior and exterior finish
  • Optional Storz cap and chain
  • Field adjustable relief valve between 50-250 psi (requires 7/8” wrench to adjust). Includes 1 ½” NPT female thread so hose can be connected to redirect water to a desirable location
  • Quick turn Bleeder valve operation - vents into relief discharge
  • Built-in Open/Close position indicator on top of valve
  • 2000gpm max flow
  • All parts that stay in contact with water are constructed of stainless steel
  • Field serviceable design
  • NFPA 1901 compliant
  • 10 year heavy-duty warranty against manufacturing defects and corrosion*

Specifications:
  • Weight: 38 lbs (18.1 kg)
  • Material: Aluminum/Stainless Steel
  • Width: 14.25'' (362 mm)
  • Height: 12.3" (312 mm)
  • Depth: 11.75'' (without Storz cap) 12.75" (with Storz Cap) (300 mm)
  • Operating Pressure: 250 psi
