CMC Rescue CSR2 Pulley
Details

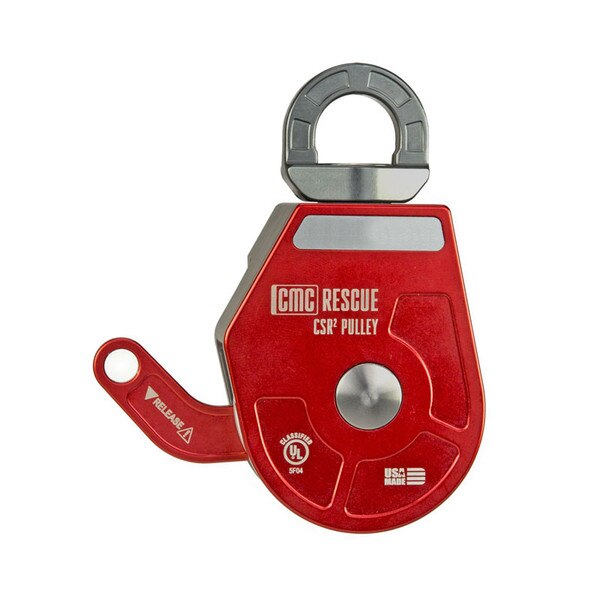

CMC Rescue CSR2 Pulley
The design of our all-new CSR2 (Confined Space Rescue) Pulley is stronger yet lighter and incorporates 7/16 in (11 mm) to 1/2 in (13 mm) lifeline. Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.
The design of our all-new CSR2 (Confined Space Rescue) Pulley is stronger yet lighter and incorporates 7/16 in (11 mm) to 1/2 in (13 mm) lifeline. Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.
Specifications
Features:- All-new stronger, lighter-weight design
- Compatible with 11-13 mm rope
- Meets NFPA 1983 (2012 ED) – General Use
- Machined from solid block of aircraft-grade aluminum
- Made in the USA
Single Pulley
- Weight: 2.5 lb (1.1 kg)
- MBS: 46 kN (10,341 lbf)
- Sheave Tread: 2.25" x .5" (57 x 13 mm)
- Color: Red / Gray
- NFPA Rating: General Use
Double Pulley
- Weight: 1.5 lb (680 kg)
- MBS: 51 kN (11,465 lbf)
- Sheave Tread: 2.25" x .5" in (57 x 13 mm)
- Color: Gray
- NFPA Rating: General Use
