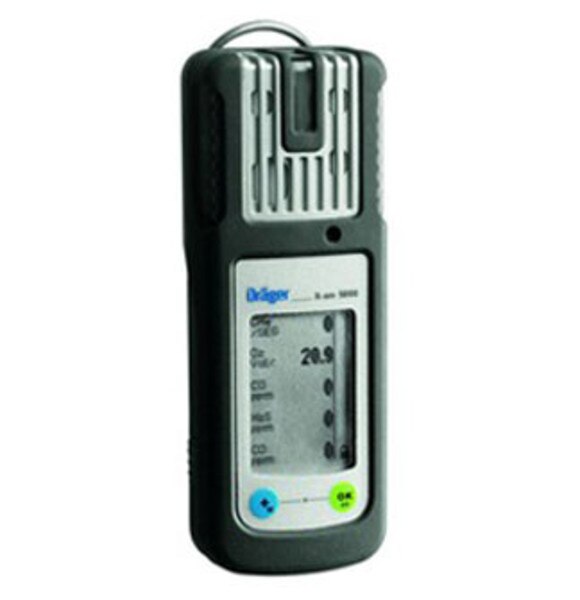

Draeger X-am 5000 Multi Gas Detector
Details
Draeger X-AM 5000 Multi Gas Detector
Comes with MiMH Battery and Charger
Choice of 4 Gases or 5
Special Kit includes:
The low weight and the compact design of the device ensure a high level of wearing comfort for the user. The device can be operated intuitively due to the 2 button control panel and the user friendly menus.
Extensive Range of Sensors
As required, different sensors can individually be used with the Dräger X-am 5000, making it an even more flexible companion. Sensors can be easily replaced, gases changed and a new settings applied.
Excellent Explosion Protection
The catalytic Ex sensor detects combustible gases and vapors in the range of the lower explosive limit and methane in the full range of up to 100% by volume. Maximum sensitivity provides an advanced means of detecting unknown gas hazards far more reliably.
Full Range of Accessories
A complete range of accessories is available for the Dräger X-am 5000. This includes power supply units, charging devices and accessories for the data logger download and configuration as well as calibration accessories. An external pump (optional), which can be operated with a hose of a length of up to 20 m, is the perfect solution for remote measurement applications as of tanks, shafts, etc.
A Rugged Design for Harsh Conditions
The Dräger X-am 5000 is tough. It’s dust-resistant according to IP67, and remains fully functional even after falling into water. The integrated rubber protection and shock proof sensors give additional resistance to impact and vibration. Moreover, the Dräger X-am 5000 is insensitive to electromagnetic interference. This means you can count on it even in the harshest conditions.
Download the Dräger X-AM 5000 Specifications
Comes with MiMH Battery and Charger
Choice of 4 Gases or 5
- Ex/O2/Dual CO/H2S
- Ex/O2/Dual CO/H2S HCN
Special Kit includes:
- Draeger X-Am 5000: EX/O₂/HCN,DUAL CO/H₂S NiMH
- Calibration Cradle: Calibration/PC Communication Cradle without USB-IR Interface
- Cal gas, 4 gas: 50% LEL CH₄, 100 ppm CO, 25 ppm H₂S, 17% O₂, 34L
- Cal gas, HCN: Hydrogen Cyanide Calibration Gas, 10 ppm, 34L
- Regulator: 500cc Standard Regulator 5/8”-18 UNF
- Hose: Sampling Hose, Tygon
- Carrying Case: Nylon Transport Case (Soft Side Case)
The low weight and the compact design of the device ensure a high level of wearing comfort for the user. The device can be operated intuitively due to the 2 button control panel and the user friendly menus.
Extensive Range of Sensors
As required, different sensors can individually be used with the Dräger X-am 5000, making it an even more flexible companion. Sensors can be easily replaced, gases changed and a new settings applied.
Excellent Explosion Protection
The catalytic Ex sensor detects combustible gases and vapors in the range of the lower explosive limit and methane in the full range of up to 100% by volume. Maximum sensitivity provides an advanced means of detecting unknown gas hazards far more reliably.
Full Range of Accessories
A complete range of accessories is available for the Dräger X-am 5000. This includes power supply units, charging devices and accessories for the data logger download and configuration as well as calibration accessories. An external pump (optional), which can be operated with a hose of a length of up to 20 m, is the perfect solution for remote measurement applications as of tanks, shafts, etc.
A Rugged Design for Harsh Conditions
The Dräger X-am 5000 is tough. It’s dust-resistant according to IP67, and remains fully functional even after falling into water. The integrated rubber protection and shock proof sensors give additional resistance to impact and vibration. Moreover, the Dräger X-am 5000 is insensitive to electromagnetic interference. This means you can count on it even in the harshest conditions.
Download the Dräger X-AM 5000 Specifications
Specifications
- Dimensions: 1.89" x 5.12" x 1.73"
- Weight: 7.8 - 8.8 oz
- Ambient Conditions
- Temp: -4 - 122°F
- Pressure: 700 - 130 hPa
- Humidity: 10 - 95% r.h.
- Alarms
- Visual: 360°
- Audible: Multi-tone > 90 dB at 30 cm
- Ingress Protection: IP67
- Operating Time
- > 12 h with Alkaline and NiMH
- > 13 h with NiMH HC; without Ex sensor typ.
- > 250 h with Alkaline Battery; when using the Save Energy Mode > 40 h
- Charging Time: < 4 h
- Data Logger: Can be read out via infrared > 1,000 hours with 5 gases and a recording interval of 1 value per minute
- Pump Operation: Maximum hose length 147 ft.
- Approvals
- CSA: Class I, Div. 1 Group A, B, C, D T. Code T4/T3
- IECEx: Ex ia I, Ex ia IIC T3, Ex d ia I
- Ex d ia IIC T4/T3
