Junkyard Dog Industries ZSTRUT Rescue Struts
Details

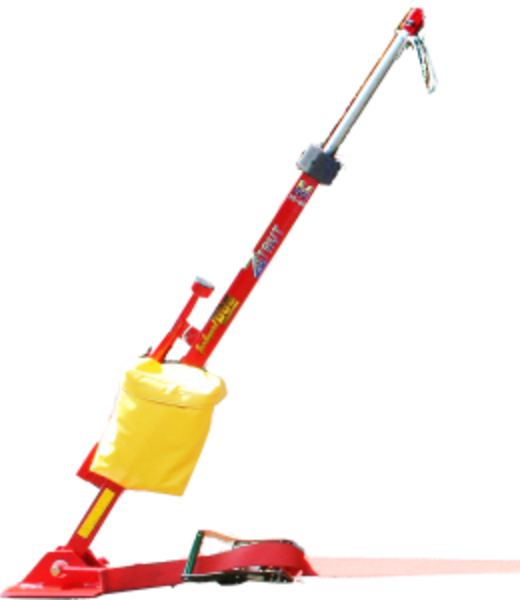

Junkyard Dog Industries ZSTRUT Rescue Struts
JYD Industries ZSTRUT Rescue Struts are completely unique to the industry due to the Patented ZipNut® Technology, an engineered deployment method that ELIMINATES THE NEED FOR PINS all together. The ZSTRUT is engineered to extend by simply pulling up, turning the collar to make fine tune adjustments, and pulling the color up to retract – no pins needed! JYD’s ZSTRUT Rescue Struts allow for quicker and simpler deployments and adjustments and the ability to follow lifts and have a safe WLL of 5000 lbs. with a 2:1 Safety factor. Third Party tested to a rated weight of 5,000 lbs.
Features:
Set Includes:
Set includes:
Set includes:
JYD Industries ZSTRUT Rescue Struts are completely unique to the industry due to the Patented ZipNut® Technology, an engineered deployment method that ELIMINATES THE NEED FOR PINS all together. The ZSTRUT is engineered to extend by simply pulling up, turning the collar to make fine tune adjustments, and pulling the color up to retract – no pins needed! JYD’s ZSTRUT Rescue Struts allow for quicker and simpler deployments and adjustments and the ability to follow lifts and have a safe WLL of 5000 lbs. with a 2:1 Safety factor. Third Party tested to a rated weight of 5,000 lbs.
Features:
- Self Contained for Easy Deployment
- Polymer Coated Base for Better Grip
- Base and Clevis Operate Separately so Base Will Stay Flat on Ground
- Large Clevis Allows to Pass Through the Ratchet Strap Head for Single Strap Triangulation
- Infinite Adjustment Due to 304 Stainless Steel Threaded Rod
- Comes with Accessory Bag Attached to Strut
- Simpson Ratchet Axle Straps Rated at 1,300 lbs
- Patented Zipnut® Technology Allows for Finer Deployment Adjustability with the Ability to Follow Lifts.
- No Adjustment Pin Needed: Just pull up to extend, turn the collar to make fine-tune adjustments, and pull up on collar to retract!
Set Includes:
- (2) Small Rescue ZSTRUTs
- (2) Standard Heads
- (2) Witches Hat Point Heads
- (2) 90 Degree Heads
- (2) Accessory Pouches
- (2) Pickets
- (2) Simpson Ratchet Straps
- (2) Simpson Axle Straps
Set includes:
- (2) Medium ZSTRUTS
- (2) Standard Head
- (2) Witches Hat Point Heads
- (2) 90 Degree Heads
- (2) Pickets
- (2) Simpson Ratchet Straps
- (2) Simpson Axle Straps, all conveniently located in the included accessory bag attached to the strut.
Set includes:
- (2) Large ZSTRUTS
- (2) Standard Head
- (2) Witches Hat Point Heads
- (2) 90 Degree Heads
- (2) Pickets
- (2) Simpson Ratchet Straps
- (2) Simpson Axle Straps, all conveniently located in the included accessory bag attached to the strut.
Specifications
The ZSTRUT Style Rescue Struts work on the “tension buttress” principal for quick and secure deployment construct of 4 gauge solid wall steel outer tube, inner threaded stainless steel column, double ZipNut® adjustment, and Simpson ratchet and axle straps. Our struts and engineered to effectively accommodate conventional and ultra-modern vehicle construction features. Each rescue strut comes with a durable accessory pouch and is powder coasted for an enduring finish and is third-party tested to a rated weight of up to 5,000 lbs.
- Triangulate with One Ratchet Strap
- Self Contained for Easy Deployment
- Polymer Coated Base for Better Grip
- Base and Clevis Operate Separately so Base Will Stay Flat on Ground
- Large Clevis Allows to Pass Through the Ratchet Strap Head for Single Strap Triangulation
- Infinite Adjustment Due to 304 Stainless Steel Threaded Rod
- Comes with Accessory Bag Attached to Strut
- Simpson Ratchet and Axle Strap Rated at 1,300 lbs.
- Patented Zipnut® Technology Allows for Finer Deployment Adjustability with the Ability to Follow Lifts
SMALL Rescue Strut Set
- Retracted Length: 27”
- Maximum Extension: 42”
- Total Individual Weight: 24 lbs.
- Standard Red Color (Customer Colors Available)
MEDIUM Rescue Strut Set
- Retracted Length: 39”
- Maximum Extension: 64”
- Total Individual Weight: 29 lbs.
LARGE Rescue Strut Set
- Retracted Length: 51”
- Maximum Extension: 81”
- Total Individual Weight: 32 lbs.
