Sked-EVAC Industrial Tripod

(0) No Reviews yet
$1,628.99
SKU: CMC-757000
$1,628.99

Details

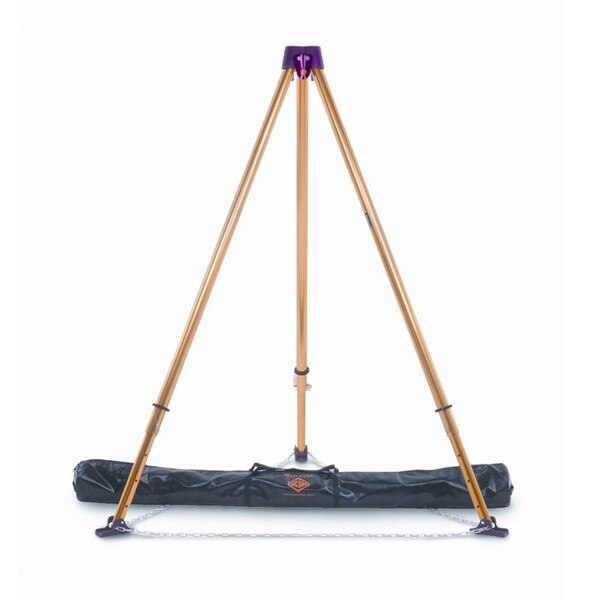

SKED-EVAC Industrial Tripod

Manufactured by Skedco, makers of the Sked® Stretcher, the Sked-EVAC tripod features aircraft grade, gold anodized aluminum legs and a cast-aluminum head. Three heavy duty rigging anchors, located in the center, have exceptionally large holes for easy attachment. Legs adjust in 5 in (127 mm) increments for a maximum height of 10 ft (3 m) and a minimum length for transport of 7 ft (2.1 m). The cast ladder feet swivel and come with a choice of a sure grip rubber pad or a point for embedding in a soft or slippery surface. Holes in the feet allow the tripod to be bolted into position. A safety chain prevents leg movement and adjusts with a screw link. The optional Winch Bracket connects DBI/Sala Salalift II Winch or SRL to a Sked-EVAC Tripod.

Sked-EVAC Tripod Proof Loads
These proof loads are from independent, third-party testing and determine the repeatable load rating (not the ultimate breaking strength) for the Sked-EVAC Tripod.

Height / Strength
  • 98 in (249 cm) / 42 kN (9,500 lbf)
  • 102 in (259 cm) / 37 kN (8,500 lbf)
  • 107 in (272 cm) / 33 kN (7,500 lbf)
  • 112 in (284 cm) / 31 kN (7,000 lbf)
  • 115 in (292 cm) / 26 kN (6,000 lbf)
  • 119 in (302 cm) / 23 kN (5,280 lbf)

Working-At-Height / Industrial Rope Access / Technical Rope Rescue
Working at height requires reliable, quality equipment. The SKED-EVAC Industrial Tripod can be used with confidence for work positioning or fall restraint protection in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards it falls under. Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.

Specifications:
  • Weight: 70 lb (31.8 kg)
  • Leg Extension: 100 in (254 cm)
  • Color: Gold / Red
