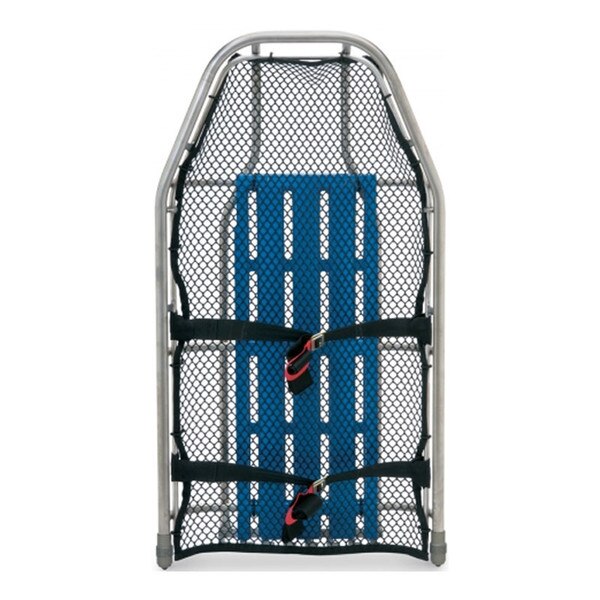

CMC Rescue Titanium Split-Apart Rescue Litter
Details
CMC Rescue Titanium Split-Apart Rescue Litter
Tapered with StratLoad™ Attachment Points
Absolutely the premium choice in litters whether you are backpacking the litter in or carrying it as standard equipment on a helicopter, the lightweight Titanium Split-Apart nests for storage, then assembles quickly. Its nested length is less than 45 in (114 cm), and it comes with four litter straps.
UL Classified to NFPA 1983 (2017 ED) – Litter
The patented StratLoad™ Attachment Points for CMC Rescue's litters allow any size carabiner to be used to attach a lifting bridle while keeping both the carabiners and the lifting bridle on the inside of the litter’s top rail. This provides protection from abrasion along cliff faces and building walls. The StratLoad feature also prevents cross gate and side loading of carabiners and orients the direction of pull along the spine of the carabiner, where it is strongest. StratLoads are 1/4 in (6mm) thick with a fullround radius on the inside edge, allowing the option of a soft attachment, which is then protected by the top railing. StratLoads are now standard on all stainless and titanium litters.
Tapered with StratLoad™ Attachment Points
Absolutely the premium choice in litters whether you are backpacking the litter in or carrying it as standard equipment on a helicopter, the lightweight Titanium Split-Apart nests for storage, then assembles quickly. Its nested length is less than 45 in (114 cm), and it comes with four litter straps.
UL Classified to NFPA 1983 (2017 ED) – Litter
- Vertical MBS: 30 (kN)
- Horizontal MBS: 14 (kN)
The patented StratLoad™ Attachment Points for CMC Rescue's litters allow any size carabiner to be used to attach a lifting bridle while keeping both the carabiners and the lifting bridle on the inside of the litter’s top rail. This provides protection from abrasion along cliff faces and building walls. The StratLoad feature also prevents cross gate and side loading of carabiners and orients the direction of pull along the spine of the carabiner, where it is strongest. StratLoads are 1/4 in (6mm) thick with a fullround radius on the inside edge, allowing the option of a soft attachment, which is then protected by the top railing. StratLoads are now standard on all stainless and titanium litters.
Specifications
- Length: 83 in (211 cm)
- Width: 23 in (58 cm)
- Height: 7.25 in (18.5 cm)
- Load Rating: 11 kN (2,473 lbf)
- Split-Apart, Tapered
- Titanium
*A stokes basket must have a rated load limit of 2,500 lbs. to be compliant to NFPA 2500.
This stokes basket has been UL certified to the NFPA 2500(1983) standard.
