CMI Flat6 Hauling System
Details
CMI Flat6 Hauling System

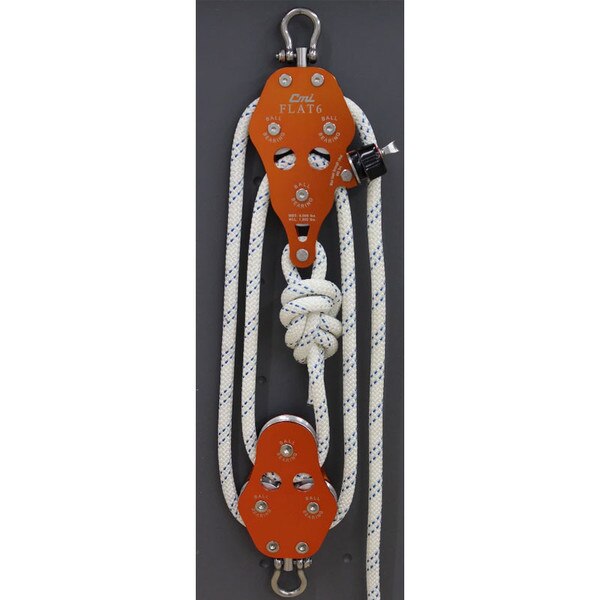

The FLAT6 is a very compact in-line haul system which produces a 5:1 mechanical advantage. These high strength blocks allow you to lift and lower the heaviest of loads. This system is perfect for pre-tensioning ropes in a speedline application and would also make a great accessory to the Portawrap that allows the user to pre-tension lines, create lift or remove slack from systems with a lot of rope in between.
The upper block has an integrated cam device to hold the rope in place. To release the rope, flip the tail upward and it will be released from the cam.
* Note: Rope not included
The FLAT6 is a very compact in-line haul system which produces a 5:1 mechanical advantage. These high strength blocks allow you to lift and lower the heaviest of loads. This system is perfect for pre-tensioning ropes in a speedline application and would also make a great accessory to the Portawrap that allows the user to pre-tension lines, create lift or remove slack from systems with a lot of rope in between.
The upper block has an integrated cam device to hold the rope in place. To release the rope, flip the tail upward and it will be released from the cam.
* Note: Rope not included
Specifications
- Orange anodized aluminum side plates
- Aluminum sheaves
- High quality sealed stainless steel bearings
- 3/8" - 1/2" rope capacity - 7/16" is ideal
- MBS: 9,000 lbs
- WLL: 1,800 lbs
- Weight: 3.4 lbs
