Gemtor Complete Davit
Details

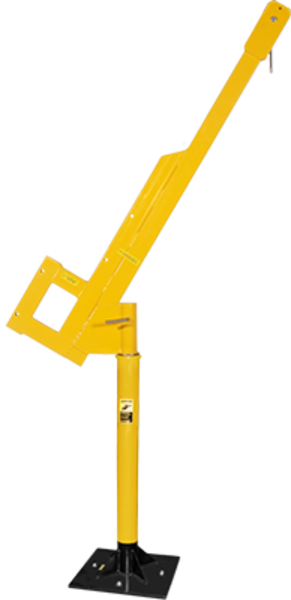

Gemtor Complete Davit
The davit’s permanent base can be mounted to steel flooring or concrete, or on the back of a truck and is especially useful for tank entry or over edges. A removable boom that rotates 360º easily attaches to the base and can be locked in any position to offer flexibility for maneuvering equipment or a worker. Additional bases can be ordered (see below) and one or more booms can be moved among many permanently installed (QP-B) and/or portable (QP-L) bases. Height 89", Reach 26", Tested static load 5400 lbs., Working Load 310 lbs.
Components:
Gemtor Quadpod/Davit components are fully interchangeable; one or more rotating booms can be moved between any combination of permanent and portable bases.
Model QP-D Rotating Boom
Model QP-D Rotating Boom Attaches to either a portable or permanent base; features two mounting positions for any combination of Gemtor fall arrest/retrieval, work and man rated winches, and one mounting position for a hanging fall protection device. Two (2) pulleys are integrated into the end of the boom. Weighs 57 lbs.
Model QP-B Permanent Base
Mounts to steel flooring, concrete or bed of truck. Weighs 48 lbs.
Model QP-P Extension Pole
For Model QP-B permanent base, 32 lbs.
The davit’s permanent base can be mounted to steel flooring or concrete, or on the back of a truck and is especially useful for tank entry or over edges. A removable boom that rotates 360º easily attaches to the base and can be locked in any position to offer flexibility for maneuvering equipment or a worker. Additional bases can be ordered (see below) and one or more booms can be moved among many permanently installed (QP-B) and/or portable (QP-L) bases. Height 89", Reach 26", Tested static load 5400 lbs., Working Load 310 lbs.
Components:
Gemtor Quadpod/Davit components are fully interchangeable; one or more rotating booms can be moved between any combination of permanent and portable bases.
Model QP-D Rotating Boom
Model QP-D Rotating Boom Attaches to either a portable or permanent base; features two mounting positions for any combination of Gemtor fall arrest/retrieval, work and man rated winches, and one mounting position for a hanging fall protection device. Two (2) pulleys are integrated into the end of the boom. Weighs 57 lbs.
Model QP-B Permanent Base
Mounts to steel flooring, concrete or bed of truck. Weighs 48 lbs.
Model QP-P Extension Pole
For Model QP-B permanent base, 32 lbs.
Specifications
