Griphoist / Tirfor TU Series Hoist Rescue Kit

Griphoist / Tirfor TU Hoist Rescue Kit

The Griphoist is a powerful device for lifting, pulling and moving large heavy objects and loads.  This tool is ideal for Fire & Rescue Operations, Construction Sites, Civil Engineering, Military applications, Industrial settings, Logging, and other operations.

The Griphoist Rescue Kit is quick and easy to set up.  It gives the user continuous control of the load being moved.

The Griphost Tirfor Rescue Kits offers the basic equipment needed to lift, pull and lower loads to save lives, rescue accident victims, remove obstructing trees and debris, tear down walls, handle wrecked automobiles and trucks and solve scores of other accidents.

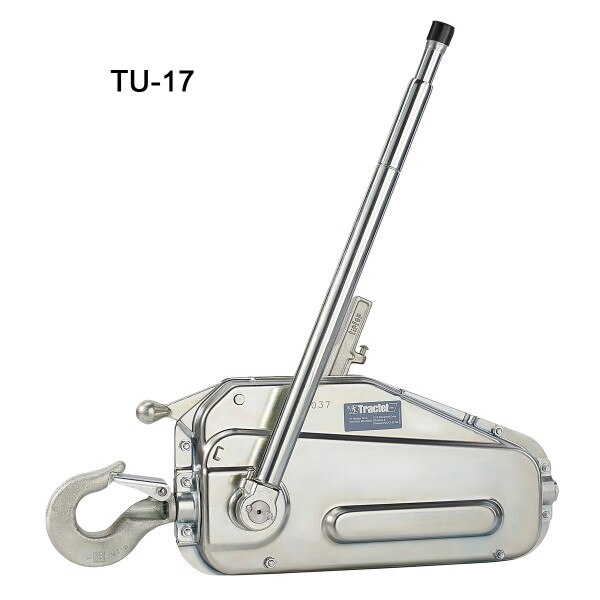

TU-17
Normal Capacity:  2,000 lbs (Capacity for Material Handling)
Normal Capacity:  1,500 lbs (Capacity for Man Riding)
Machine Weight:  18.5 lbs
Kit Weight:  53 lbs.
Machine Dimensions:  20 3/4" x 9 3/4" x 4 1/2"
Wire Rope Diameter:  5/16"
Minimum Wire Rope Breaking Strength:  10,000 lbs

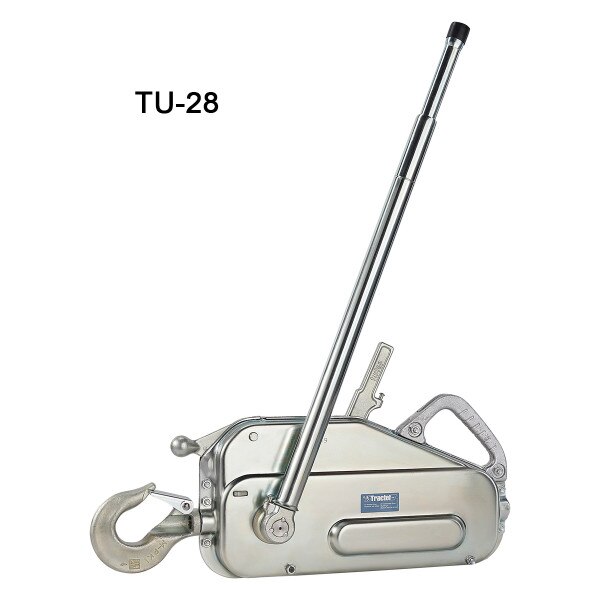

TU-28
Normal Capacity:  4,000 lbs (Capacity for Material Handling)
Normal Capacity:  3,000 lbs (Capacity for Man Riding)
Machine Weight:  41 lbs
Kit Weight:  123 lbs.
Machine Dimensions:  26" x 13" x 5 3/4"
Wire Rope Diameter:  7/16"
Minimum Wire Rope Breaking Strength:  20,000 lbs

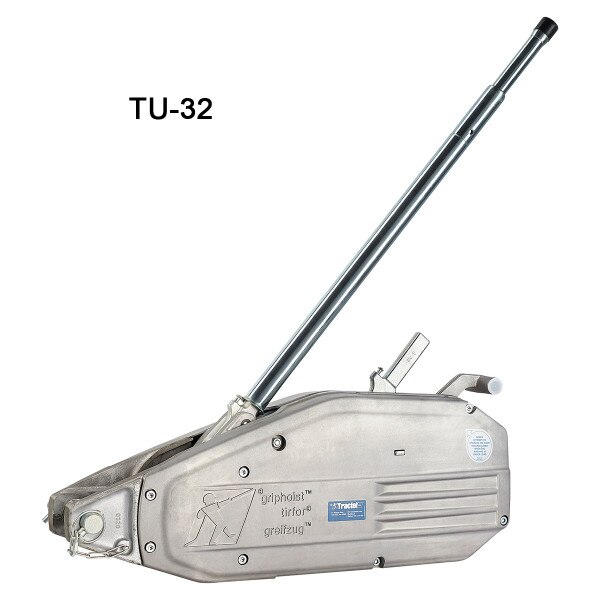

TU-32
Normal Capacity:  8,000 lbs (Capacity for Material Handling)
Normal Capacity:  6,000 lbs (Capacity for Man Riding)
Machine Weight:  59.5 lbs
Kit Weight:  160 lbs.
Machine Dimensions:  27" x 13" x 6 1/8"
Wire Rope Diameter:  5/8"
Minimum Wire Rope Breaking Strength:  40,000 lbs

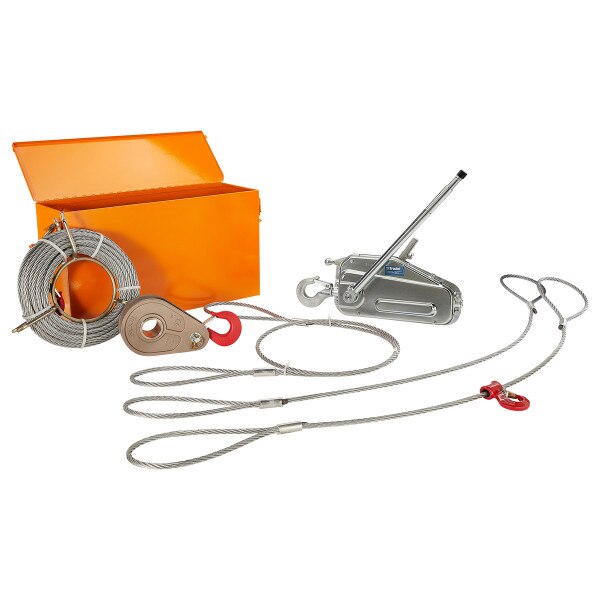

Each rescue kit includes:

• Steel Box
• Griphost / Tirfor
• 60 ft. of galvanized wire rope with safety hook mounted on carrying reel
• Telescopic handle for manual operation of hoist
• Appropriate snatch block pulley
• Wire rope sling 6 ft. long with chocker hook
• 2 wire rope slings 6 ft. and 9 ft. long

Note: A shipping surcharge will be applied, due to the size and weight of this item it must ship via a freight carrier.
