High Pressure Pump WH-20XTAF

SKU TL-WH-20XTAF
(0) No Reviews yet
$999.99

Details

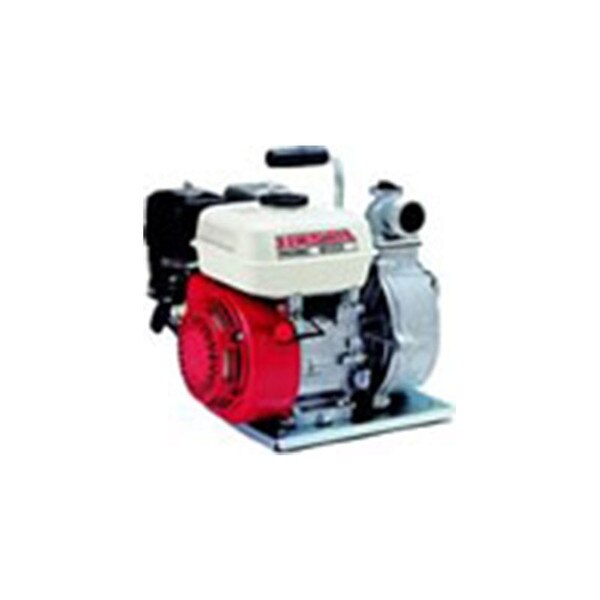

High Pressure Pump WH-20XTAF

1.5 inch pump This high pressure pump is powered by the 5.5 HP GX series Industrial Engine. This pump offers exceptional performance when higher pressure is required in applications such as using sprinklers or a nozzle.

Features & Benefits:

  • Honda Overhead Valve Engine
  • High Output, High Pressure Pump
  • 71psi max
  • 2" Ports
  • Maximum Capacity of 132 Gallons per Minute
  • 2 Year Residential Warranty
  • 2 Year Commercial Engine & 3 Month Pump Component Warranty


The price of this product applies only for the following agencies and organizations: (Customers who DO NOT fall into one these specifications please call (732) 502-8060 or E-mail Sales@allhandsfire.com):


  • State, County & Municipalities and their respective agencies
  • State regulated utilities, facilities & authorities
  • Religious institutions and other tax exempt facilities, county & municipalities and their respective agencies
  • IRS tax exemption number required



Specifications

  • Engine GX160, 5.5 HP, OHV
  • Displacement 163 cc
  • Bore and Stroke 2.7" x 1.8"
  • Compression Ratio 8.5:1
  • Pump Type High Pressure Centrifugal, Self-Priming
  • Priming Time 60 sec. at 16.4 ft.
  • Drive System Direct
  • Discharge Capacity 132 gals./min.
  • Suction Port Diameter 2" NPT
  • Discharge Port Diameter 2" NPT
  • Total Head Lift 164 ft.
  • Suction Head Lift 26 ft.
  • Maximum Pressure 71 psi
  • Solids Handling N/A
  • Dimensions 16.7" x 14.8" x 15.9"
  • Dry Weight 51.8 lbs
  • Strainer Part # 78325-YB7-720
