Junkin Stretcher Without Leg Divider
Details

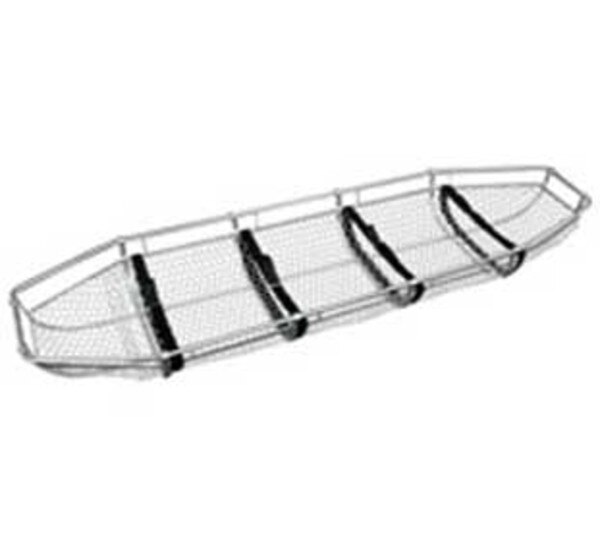

Junkin Safety Lightweight Basket Type Stretcher without Leg Divider
Designed to accommodate most standard 16” x 72” full length backboards. Nylon web straps at chest, abdomen, thigh, and calf. Adjustable footrests for vertical lifting. Frame is 5/8" steel tubing; cross braces and runners 3/16" x 3/4" flat steel. Basket is 18 gauge, 1" hexagon mesh netting.
Designed to accommodate most standard 16” x 72” full length backboards. Nylon web straps at chest, abdomen, thigh, and calf. Adjustable footrests for vertical lifting. Frame is 5/8" steel tubing; cross braces and runners 3/16" x 3/4" flat steel. Basket is 18 gauge, 1" hexagon mesh netting.
Specifications
- Length: 82"
- Height: 8.5"
- Width - Chest: 24.25"
- Width - Abdomen: 24"
- Width - Thigh: 23.5"
- Width - Calf: 23"
- Carton Size: 83" x 24" x 9"
- Weight: 31 lbs
- Load Capacity: 1,500 lbs
*A stokes basket must have a rated load limit of 2,500 lbs. to be compliant to NFPA 2500.
This stokes basket does not meet the NFPA 2500 (1983) standard.
