QuadraFog Nozzle 1" NH DQ60 Series Selectable Gallonage

(0) No Reviews yet
$479.99 to $794.99
SKU: TFT-DQS60
$479.99 to $794.99

Nozzle

Please select options before adding to cart

Details

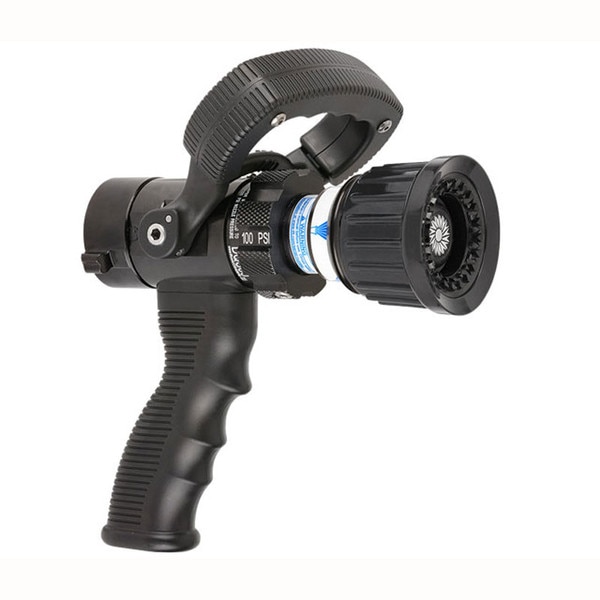

Quadrafog Nozzle 1" NH DQS60P

Selectable gallonage nozzle with five flow settings of 5,10,24,40 and 60 gpm@100psi (20-40-90-150-230 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. Rocker lug 1" NH swivel is standard.

Specifications:
  • Flow Control Method: Selectable Flow at a pressure (constant gallonage, flow does not change with pattern)
  • Flow Rate: 5-10-25-40-60 gpm
  • Coupling Size (Nozzles): 1.0 inch (25mm)
  • Coupling Style (Nozzles): Rocker
  • Coupling Swiveling/Rigid (Nozzles): Swivel (full time, even after tightening)
  • Pressure: 100 psi (7bar)
  • Nozzle Body Style: Nozzle with shutoff
  • Valve Design: Ball Valve (Stainless)
  • Valve Actuation Method: Horseshoe (Injection Molded Nylon w/ Colored Handle)
  • Fog Pattern Method: cut metal teeth (fixed)
  • Nozzle Bumper Material: Rubber - press fit
  • Certifications: N/A
  • Foam Expansion Performance: N/A
