AB Inflatables F-Series Professional Fiberglass RIB with Console w/ Forward Seat & Under Deck Fuel Tank
Details

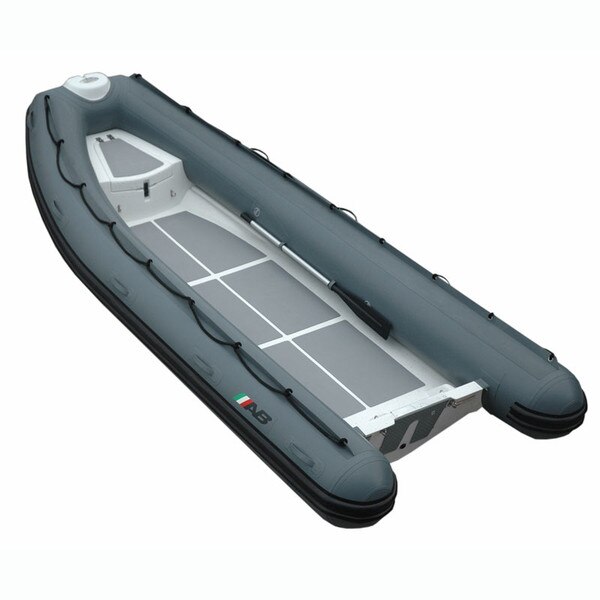

AB Inflatables F-Series Professional Fiberglass RIB
The versatile "F-Series" professional RIBS have an open design that allows for easy customization. the hand laid fiberglass hill makes for a strong, sturdy boat that will easily handle all sea conditions. Our deep V forward hull design provides for superior stability and a drier ride. The open deck allows for easy loading and transport of equipment or personnel. Te reinforced commercial grade fiberglass hulls utilize a multi-later system for added strength. The boat features a tough 1670 D-tex inflatable tube, all around lifelines and non-skid tube surface, double solid run rail, four lifting and towing rings and extra heavy duty handles. various fiberglass and aluminum consoles and seats can be install for any configuration required.
The versatile "F-Series" professional RIBS have an open design that allows for easy customization. the hand laid fiberglass hill makes for a strong, sturdy boat that will easily handle all sea conditions. Our deep V forward hull design provides for superior stability and a drier ride. The open deck allows for easy loading and transport of equipment or personnel. Te reinforced commercial grade fiberglass hulls utilize a multi-later system for added strength. The boat features a tough 1670 D-tex inflatable tube, all around lifelines and non-skid tube surface, double solid run rail, four lifting and towing rings and extra heavy duty handles. various fiberglass and aluminum consoles and seats can be install for any configuration required.
Specifications
Features:- Fiberglass Stringer System Laminated into Hull
- Bow Locker / Seat
- Diamond Shape Non Skid Deck
- Plastic External Transom Plate
- Aluminum Internal Transom Plate
- Orca (CSM) 1670 D-tex Five Layer Coated Professional Use Fabric
- 4 Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
- Pressure Relief Valves
- Raised Double Solid Rub Rail
- Stainless Steel Bow Eye
- 4 Stainless Steel Davit Lifting Points
- Stainless Steel Tow Ring & Tie Downs
- Deck Condensation Plug
- Deck Drain with Plug
- 1 Front & 4 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
- 4 Layer Reinforced Seams
- Paddles with Aluminum Shaft
- Paddle Holders
- Removable Stern Seat
- Hand Pump
- Maintenance Kit
- Owner's Manual
- Additional Air Retaining Chamber Under the Floor
- Non-Skid (CSM) Coated Fabric On Tube Surface
- Lifeline Around Tube
- Rubber Protector on Full Length of Keel
Specifications:
- Overall Length: 14’ / 4,27m
- Overall Beam: 6’4’’ / 1,94m
- Inside Length: 10’10’’ / 3,3m
- Inside Beam: 3’1’’ / 0,94m
- Tube Diameter: 19’’ / 0,48m
- Person Capacity: 8
- Weight: 347,6 lbs / 158 kg *
- Recommended HP: 40
- Maximum HP: 50
- Shaft Length: 20’’ / 50,8 cm
- RDC Design Category: C
- (*) Weight spec applies for the open version

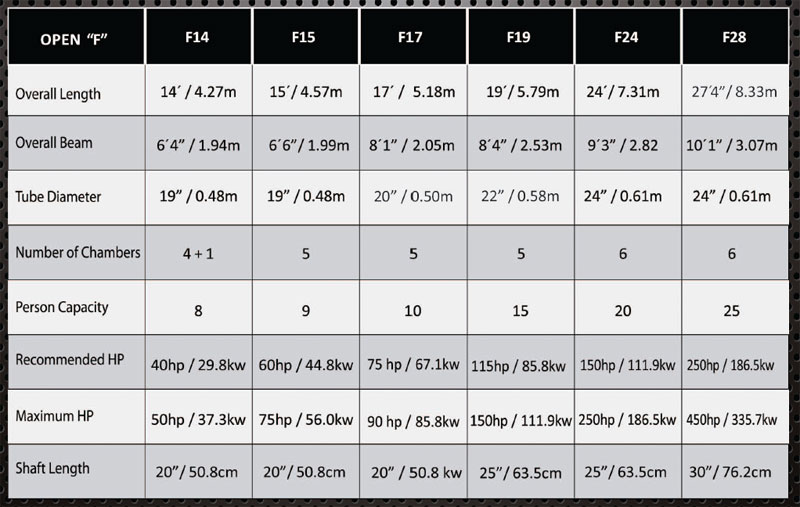

Click to enlarge Spec Sheet
The 19 Foot, 24 foot and 28 Foot boats come with Console w/ Forward Seat, Leaning Bolster, & Under Deck Fuel Tank. Please contact us for more information at sales@allhandsfire.com
