2 ? Inch Gated Siamese AY9

(0) No Reviews yet
$2,622.00 to $2,740.00

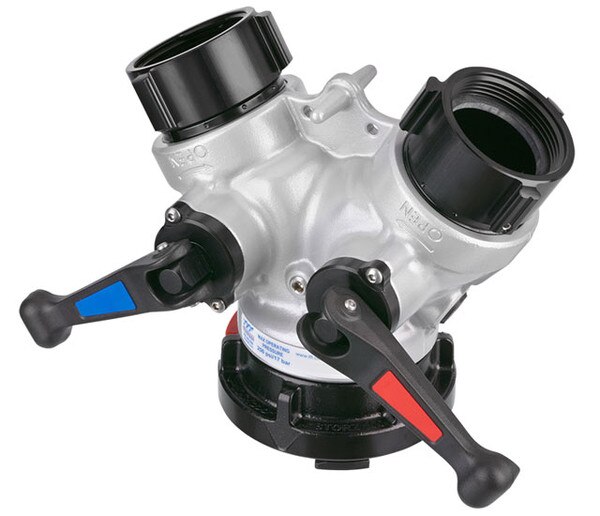

2 ½ Inch Gated Siamese Lightweight Wye Waterway AY9

The Siamese incorporates TFT’s unique aluminum half-ball design providing up to 500gpm efficiently through its dual valved 2 ½” discharges. Color coded super tough nylon folding handles are standard and these lightweight hard anodized and powder coated appliances can be ordered with your choice of inlet and outlet couplings.

TFT’s 2 ½ Inch Gated Siamese is a lightweight wye with a full 2 ½ inch waterway. 300 psi (20 bar) operating pressure from either side of valve. Field replaceable valve seats. Quarter turn folding valve handles for the ultimate in compactness. Low force to move valve even under pressure. Cast in carrying handle. Automatic valve lock keeps valve position while fl owing at partial openings. Pipe threaded ports for pressure gauge and bleed valve. Holes for cap tether attachment. Aluminum casting is hardcoat anodized and silver TFT-powder coat finish inside and out for maximum corrosion protection.


Side A

  • 4" Storz
  • 5" Storz
  • 6" Storz

Side B

  • Dual 2.5" NH Female Swivel Rocker Lug



  • Finish: Stardust Silver
  • Handle Type: Quarter Turn
  • L D H Inlet: Yes
  • L D H Outlet: No
  • Pressure Relief Valve: No
  • Type: Siamese
  • Weight: 12.3 lbs
