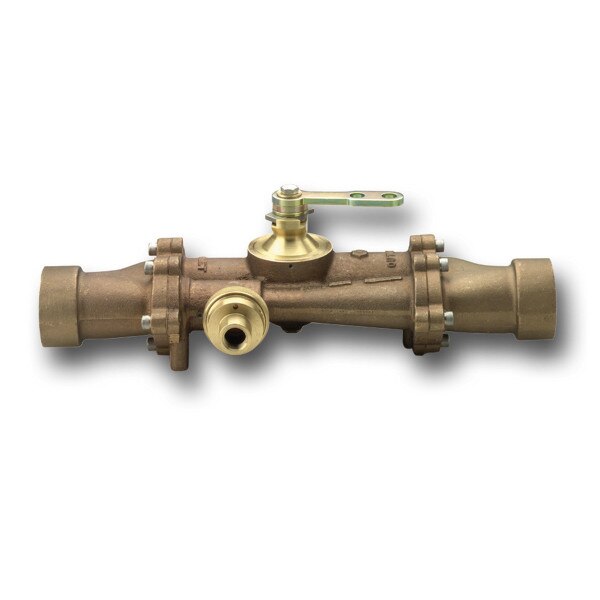

Akron Brass 3096 Truck Foam System

Akron Brass 3096 Truck Foam System

Eight (8) quick change handle positions means less installation time. Improved pressure recovery provides greater versatility.

Features:

• 8 quick change handle positions (easily changed after installation) means less installation time
• Specify inlet and outlet, 2'', 2 1/2'' NPT or 2'' standard groove
• Improved pressure recovery provides greater versatility
• Choose 60, 95, or 125 gpm (230, 360, or 475 lpm)
• Performs well with both 75 and 100 psi rated nozzles. 75 psi (5 bar) nozzles allow longer hose lays and less reaction force.
• Easily changed to water line use

Each Truck System Includes:

• Rugged brass by-pass eductor
• Foam metering dial
• One 2'' In-line Swing-Out valve - with built-in check valve
• Two 1'' In-line Swing-Out valves
• One 1'' check valve
• Four Style 1477 remote controls

Note: Each truck system is for a single tank operation. A two tank system requires one (1) additional 1'' Swing-Out Valve, 1'' check valve and 1477 Remote Control.
