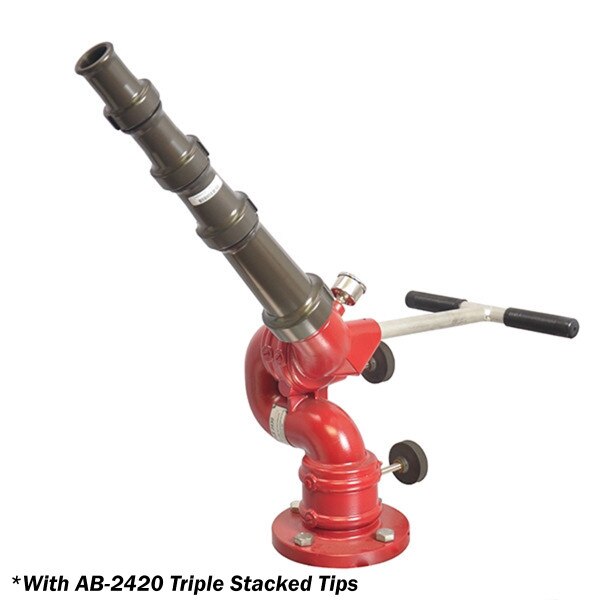

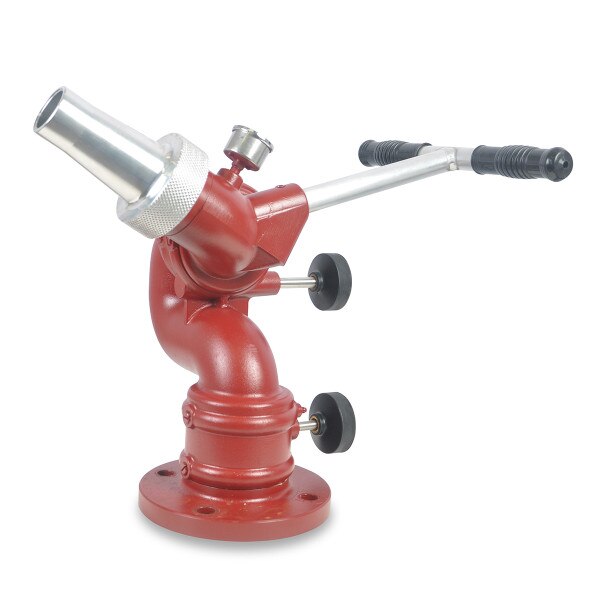

Akron Brass 3430 GP Manual Monitor

Akron Brass 3430 GP Manual Monitor

The GP Manual Monitor is the most cost effective, highest performing 1000gpm firefighting monitor found worldwide. The rugged, lightweight design was engineered using advanced computer aided design and testing technology.

The 1000 gpm rated monitor shall have a DN80 or 3" ANSI or 4" ANSI flanged inlet 2.5" waterway with a 2.5" NH discharge outlet. The discharge outlet shall have a built in stream shaper element. The vertical and horizontal travel locks shall incorporate round manual knobs. A “T" handle tiller bar shall be provided for vertical and horizontal position adjustment. Enhanced, compact design provides for less tip weight which translates to lower handle operating force. The monitor height shall not exceed 14-7/16" from the flange to the top of the outlet elbow (less nozzle) when in the vertical position. All elbows shall have cast-in turning vanes. The monitor shall have a vertical travel of 135° and horizontal travel of 360°.

Features:

• Rated flow up to 1000 gpm (3800 lpm)
• Rotation Continuous 360°
• Elevation +90° to -45°
• Cast-in turning vanes & integrated removable stream shaper for maximum reach and stream performance
• Built in pressure gauge
• ''T'' handle manual control provides precise, easy positioning and control
• Compact, efficient design requires minimum mounting space Nozzle
