Akron Brass 4475 AkroFoam Master Stream Nozzle with Pickup Tube
Details

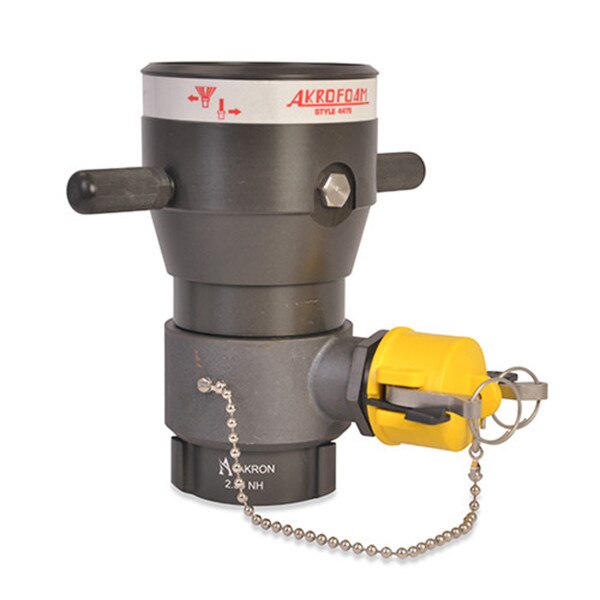

Akron Brass 4475 AkroFoam Master Stream Nozzle with Pickup Tube
The AkroFoam foam nozzles are self-educting master stream nozzles designed for educting foam at flow rates up to 1000 gpm (4800 lpm). Contact a distributor today for more information about our master stream foam nozzles.
Features:
- Manual Pattern Control
- Spring loaded baffle that allow flow setting selection of 350, 500, 750, or 1000 gpm (1325, 1900, 2900, or 3800 lpm) with a simple push and turn of the baffle head.

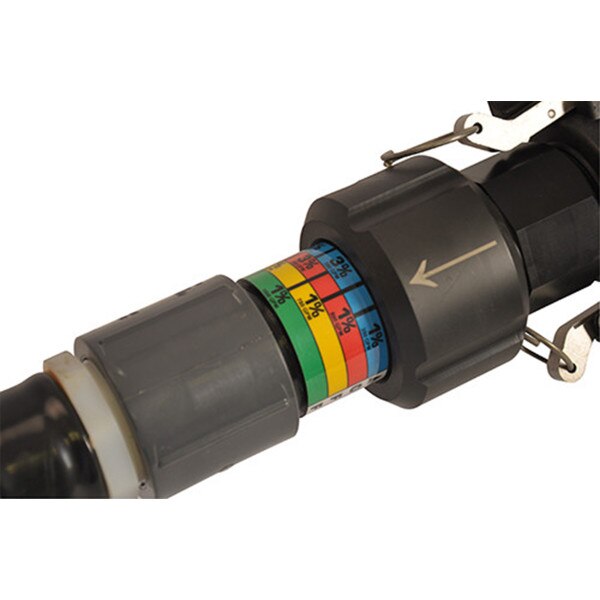

- Quick connect, adjustable metering head with pick up rates 1% & 3%, plus 6% for 350 & 500 gpm (1325 & 1900 lpm) and 1% & 3% for 750 & 1000gpm (2900 & 3800 lpm)
- Integrated Foam Shutoff
Specifications
- Type: Foam
- Material: Pyrolite
- Brand: Akrofoam
- Swivel Inlet: 2 1/2" (65 mm)
- Length: 10 7/8" (276 mm)
- Width: 11" (280 mm)
- Height: 9 1/4" (235 mm)
- Weight: 12 lbs (5.4 kg)
- Flow (GPM): 350-500-750-1000
- Flow (LPM): 1325-1900-2900-3800
- 5 Year Warranty
