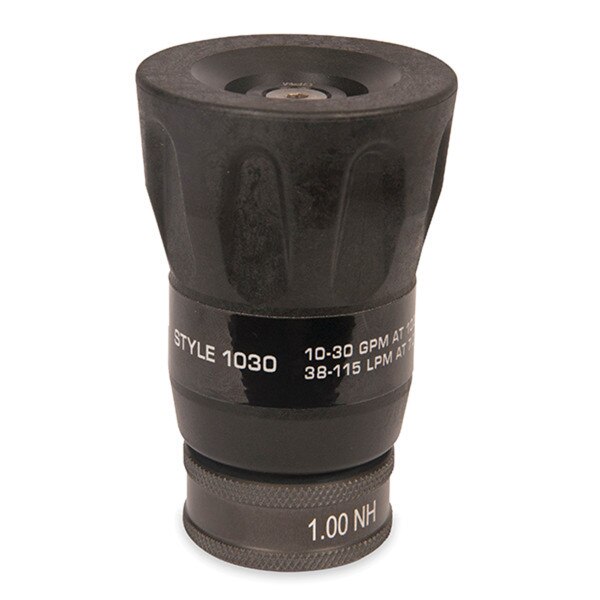

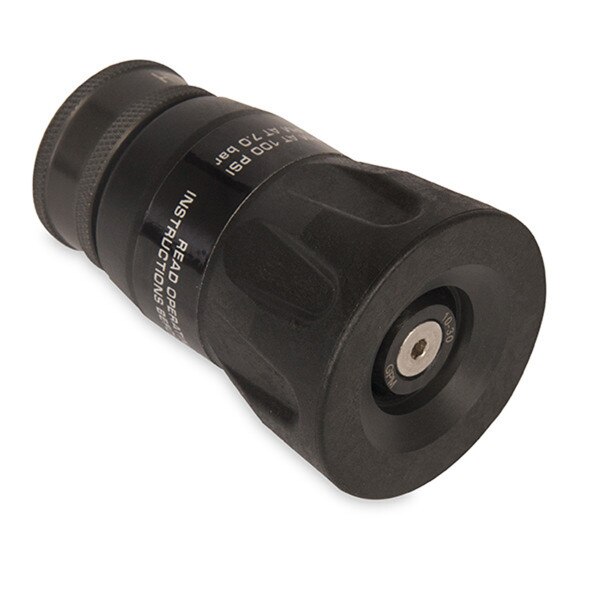

Akron Brass 1030 Dual Gallonage Forestry Nozzle

Akron Brass 1030 Dual Gallonage Forestry Nozzle

Small lightweight nozzle designed for the rugged simplicity needed for forestry / wildland applications and any application where low flow is necessary. A dual flow adjustable pattern nozzle with a simple twist operation allows you to switch to various settings.

The Akron Brass Dual Gallonage Nozzle Style 1030 is a lightweight dual flow nozzle with an adjustable pattern. The nozzle shall have a rated pressure of 100 psi (7 bar) and a maximum operating pressure of 200 psi (13.8 bar) with dual flow settings of 10 gpm (40 lpm) in straight stream and narrow fog and 30 gpm (115 lpm) in straight stream and narrow fog. The nozzle shall have a one piece solid polymer pattern sleeve, Pyrolite inlet and 1 Year Warranty.

Dual flow with an adjustable pattern at the rated pressure of 100 psi (7bar) allows you to switch to the following settings:

• Off
• 10 gpm/40 lpm straight stream
• 10 gpm/40 lpm narrow fog
• 30 gpm/115 lpm straight stream
• 30 gpm/115 lpm narrow fog

Applications/Solutions:

• Firefighting - Wildland Forestry
