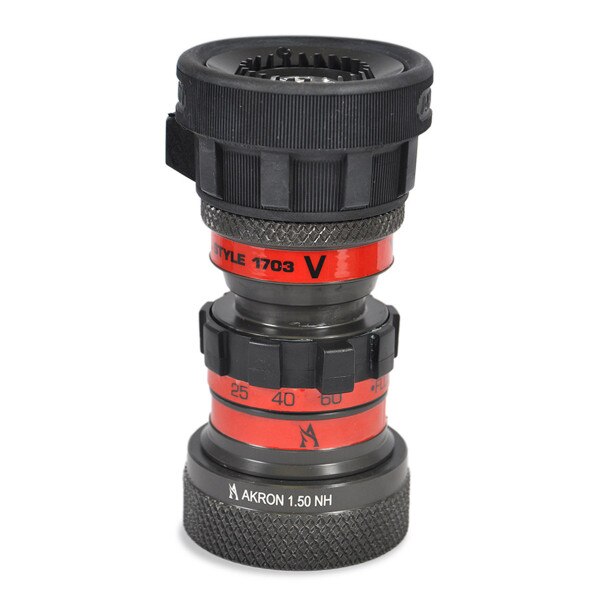

Akron Brass 1703 Turbojet Tip

Akron Brass 1703 Turbojet Tip

The Turbojet is a constant gallonage nozzle (flow remains the same in all patterns) with multiple flow settings for operator flow control. Use the Turbojet one time and see why it's the nozzle of choice by firefighters worldwide.

An Akron Brass Turbojet lightweight fog and straight stream tip Style 1703 with multiple fixed constant gallonage settings of 13-25-40-60 GPM (50-100-150-230 lpm) at 100 psi (7bar) shall be provided. The tip shall have spinning teeth, multiple pattern detents, a rubber bumper with raised lug for pattern identification, and extruded Pyrolite body and sleeve. The tip shall also have a minimum 110° angle at wide fog, a 1.5”(38 mm) swivel inlet, be capable of flushing without shutting down, and must meet all aspects of NFPA 1964 with test results.

Features:

• Pattern Identification
• Larger more legible labels
• Simple to operate (quarter turn from straight stream to fog)
• Raised lug marks straight stream for limited visibility operations
• Easy to service & repair
• Meets European Standard
• Flow setting at 100 psi (7 bar) operating pressure (230 psi (16 bar) maximum operating pressure)
• Raised bumper lug for straight stream pattern identification
• Compatible with Quick-Attack Foam Tube Style 790
• For use on Style 753 shutoff
