CMI Uplift Companion Pulley

(0) No Reviews yet

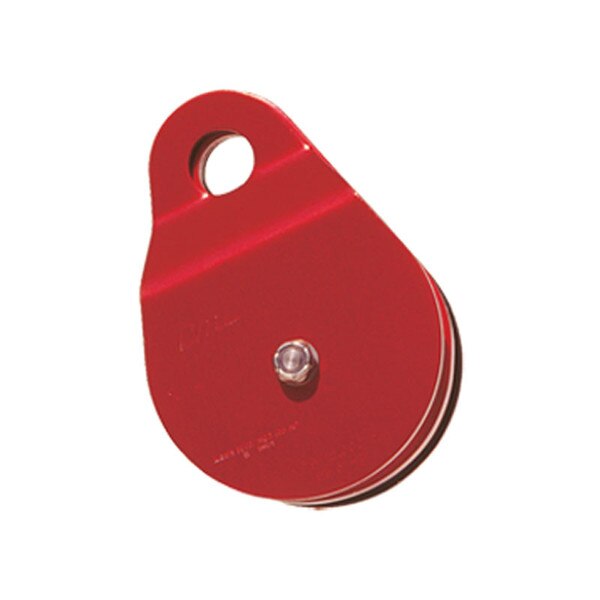

CMI Uplift Companion Pulley

CMI's years of experience in pulleys and ascenders come together in this one revolutionary product. A double pulley is mated to a remotely triggered retractable brake. When rigged with the matching color coded companion pulley it serves as the core of a simple four to one mechanical advantage system. Easy to set up, easy to store and easy to use, the entire system can be pre rigged and stored for quick deployment when seconds count. Ideal for use with a tripod rig in confined space applications.

The new Micro Haulers miniaturize the design of the Uplift, taking self contained hauling systems where they've never been before. The same operations and features as their big brothers, but measuring only six inches end to end. Handles up to 1/2" rope. Mated with our double micro pulley they can be stored pre rigged. Unrigged they will fit in a pocket or small pouch.

Red/Black anodized aluminum side plates, two 3" aluminum sheaves, bushing, and stainless steel axle.

Exceeds tests for national fire protection association standard on fire service life safety rope and system components NFPA 1983-2006 edition. *Not Certified*

  • MBS: 12,000 lbs
  • Rope Capacity: 1/2"
  • Size: 5.75" x 3.75"
  • Weight: 1.9 lbs
