CellBlockEX CellSafe MAX Drum
Details

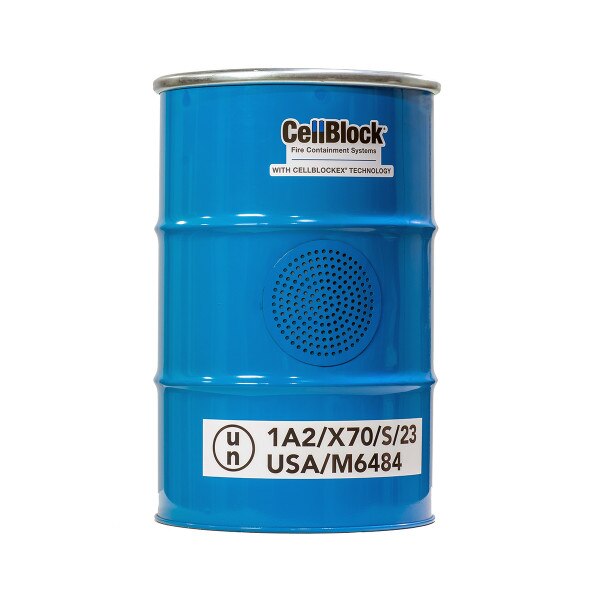

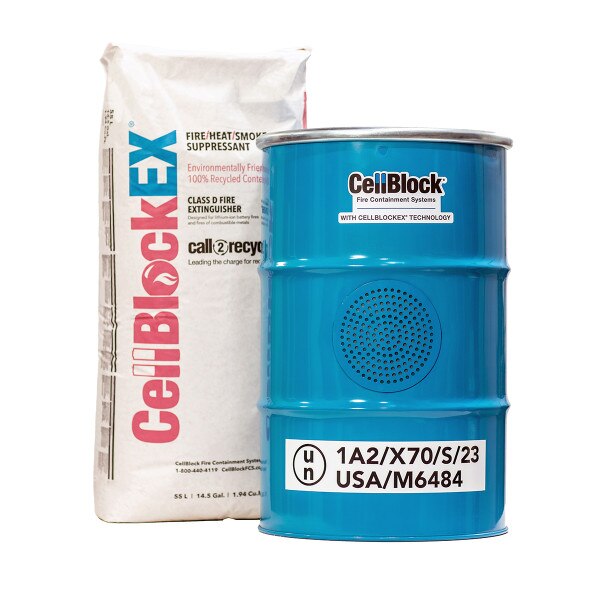

CellBlockEX CellSafe MAX Drum
Designed for high watt hour batteries over 300 Wh
CellSafe® Max Battery Kits leverage CellBlockEX technology and patented packaging designs which impart powerful thermal runaway containment to achieve unmatched regulatory relief.
Features:
- DOT Special Permit 21442 and Equivalency Certificate SU 13896 authorized; DOT Special Permit 20549 applicable.
- P911 and P908 tested and compliant.
- Safest and most cost effective solution for damaged batteries over 300 Wh.
High Performance Packaging:
- Ship lithium-ion batteries rated up to 1800 Wh including damaged/defective/recalled (DDR)
- Exemptions from training, paperwork, marking and labeling (49 CFR, subparts C through H of part 172)
- Ship multiple DDR batteries per package.
Specifications
Dimensions:
- 16 Gallon Drum: 20.8" h x 13" dia
- 30 Gallon Drum: 29.5" h x 15.6" dia
- 55 Gallon Drum: 33.5" h x 18.5" dia
Tare Weight:
- 16 Gallon Drum: 33 lbs
- 30 Gallon Drum: 47.5 lbs
- 55 Gallon Drum: 96 lbs
Max Gross:
- 16 Gallon Drum: 154 lbs
- 30 Gallon Drum: 340 lbs
- 55 Gallon Drum: 661 lbs
Regulatory Maximum (Watt hours):
- 16 Gallon Drum: 1800 Wh
- 30 Gallon Drum: 1800 Wh
- 55 Gallon Drum: 1800 Wh
Storage Rating (ECR):
- 16 Gallon Drum: 1800 Wh
- 30 Gallon Drum: 3300 Wh
- 55 Gallon Drum: 6000 Wh
