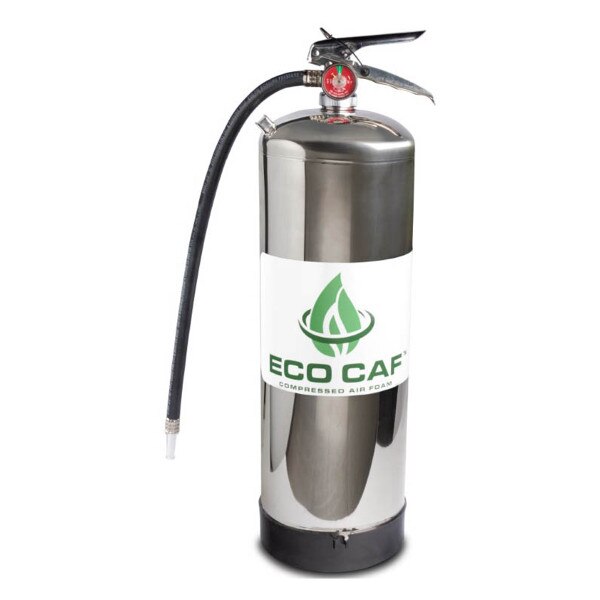

ECO CAF 3 Gallon Compressed Air Foam Extinguisher

The ECO CAF 3 Gallon Compressed Air Foam Extinguisher is an economical solution for firefighting that will fit the budgetary needs of both paid and volunteer fire departments, as well as industries nationwide. This CAF fire extinguisher operates without an external pressure vessel, running at 100–120 PSI using a standard air compressor. With the ability to dispense around 30 gallons of finished foam, it is lightweight, compact, and compatible with various foam types, including Class A, AFFF, and AR foams. The ECO CAF 3 Gallon Compressed Air Foam Extinguisher is setting the standard for cost-effective, efficient firefighting equipment to meet today’s demands.

Features:

• Finished Foam Capacity: Up to 30 gal.
• Throw Distance: Up to 40 Ft.
• Foam Expansion: 20:1 Expansion Ratio and higher
• Weight Full: 18 lbs.
• Operating Pressure: 100 – 120 PSI Discharge
• Type: Compressed Air
• Foam Types: Class A, B & ARF Foams

Applications:

• Apparatus
• Chiefs vehicles
• Heavy equipment
• Utility side by sides
• and more!

Departments and Entities currently using ECO CAF:

• King Ranch, TX
• PG&E
• CAL FIRE
• Southern Cal Edison
• US Forest Service
• Washington DNR
• Cal Trans (California Department of Transportation)
• U.S. Space Force
• Golden Gate Bridge, San Francisco, CA
• Atlas Tree Service
• Sierra Pacific Industries
• Outback Tree Service – Outback Contractors
• National Park Service
• Various Fire Departments in all of the United States, including New York and Texas

FAQs:

What maintenance does the ECO CAFS require?

Little to no maintenance is required for the lifetime of this unit, providing reasonable care is taken to protect it from the elements. It is recommended that the unit be shot twice a year to keep air lines free and clear of hard water deposits. It is also recommended that the PSI gauge be checked at annually.

Can the unit be used with any type foam concentrate?

Yes. The ECO CAFS can use any style of foam concentrate including Class A, B, and ARF (alcohol resistant foam).

Can I adjust the consistency of foam produced by the ECO CAFS from wet to dry?

Yes. This can be achieved by partially closing the discharge valve on the unit to approximately 50%. A wetter foam can be achieved by partially closing the hose nozzle approximately 50% to 75%. As the foam discharges through the nozzle with the nozzle partially closed, the bubbles are stripped and turned back into water.

If a part or component is broken in the field, how do I replace it?

All parts and components can be ordered or replaced through All Hands, or direct from ECO CAFS Products.

What is ECO CAFS warranty?

Each systems comes with a non-transferable, two-year warranty cover manufacturers defects

Will ECO CAFS work with an adjustable nozzle?

Yes. A straight bore nozzle is preferred but an adjustable nozzle can be used if desired.

Can I use nitrogen in place of standard air?

Yes. Nitrogen is an inert gas and works well as an alternative.
