Elkhart Standpipe Flow Meter
Details
Elkhart Standpipe Flow Meter

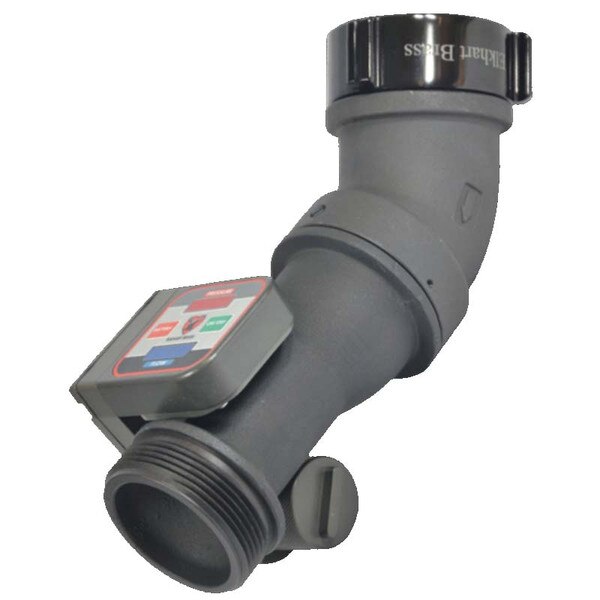

The Portable Standpipe Meter is a self-contained, battery operated device designed for high-rise stand pipe operations. It measures pressure and flow rate directly without using charts or doing calculations. Mounted on a flow tube is an indicator module that has two 4-digit LED displays for both pressure and flow. All electronics are self contained and powered by a rechargeable battery with quick change housing. All program features are accessed via pushbutton switches on the front of the indicator module.
Features:
The Portable Standpipe Meter is a self-contained, battery operated device designed for high-rise stand pipe operations. It measures pressure and flow rate directly without using charts or doing calculations. Mounted on a flow tube is an indicator module that has two 4-digit LED displays for both pressure and flow. All electronics are self contained and powered by a rechargeable battery with quick change housing. All program features are accessed via pushbutton switches on the front of the indicator module.
Features:
- Accurate digital readout of flow and pressure up to 250 gpm / 250 psi
- Rechargeable 9V battery powered
- 5 hours use per charge with low battery indication and standby mode
- Lightweight aluminum, 5.25 lbs
- Low and critical battery alerts
- High and low flow warnings
- High pressure warning
- Standby mode to save battery life
- Pressure and flow rate calibration
- Programmable for PSI/kPa/Bar -- GPM/LPM
Specifications
- Dimensions: 4.5" w x 12.25" H x 7" D
- Weight: 5 lbs.
- Coupling: 2.5: NH Thread
- Power: HiTECH Rechargeable Battery
- Battery Life: 5 Hours minimum
- Pressure Sensor Range: 0 - 250 PSI Maximum
- Flow Sensor: Paddlewheel type
