Jumbo Wye AW4

(0) No Reviews yet
$2,318.00 to $2,955.00


Jumbo Wye AW4

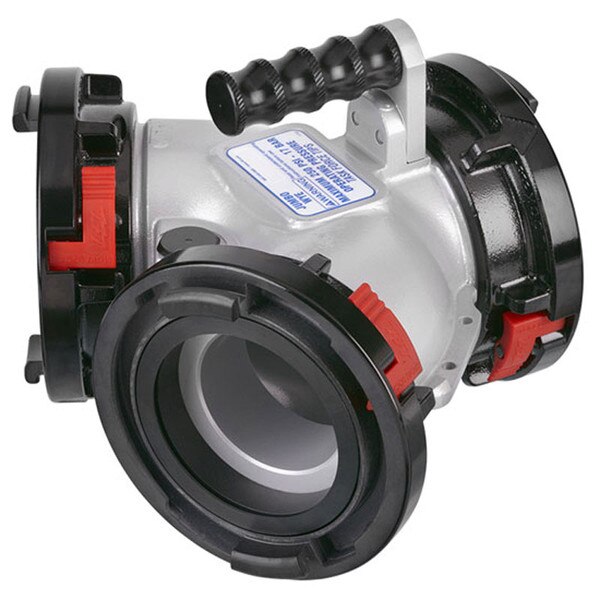

The same construction as the JUMBO SIAMESE, but without the clapper. Maximum operating pressure is 250 psi (17 bar). Meets 900 psi (62 bar) hydrostatic strength test. The aluminum castings are hardcoat anodized and TFT-powder coat finish inside and out for maximum corrosion protection. Rugged carrying handle included. Three strategically placed legs allow the appliance to sit off the ground even with 6” Storz on inlet/outlet. Large main housing provides superior strength and durability. Hose couplings are attached using polymer bearing rings, which provide electrical isolation to help prevent galvanic corrosion.


Side A

  • 4" Single Storz
  • 5" Single Storz
  • 6" Single Storz Swivel

Side B

  • 4" Dual Storz
  • 5" Dual Storz
  • 6" Dual Storz Swivel



  • Handle Type: Quarter Turn
  • L D H Inlet: Yes
  • L D H Outlet: Yes
  • Pressure Relief Valve: No
  • Type: Wye
  • Weight: 18.9 lbs
