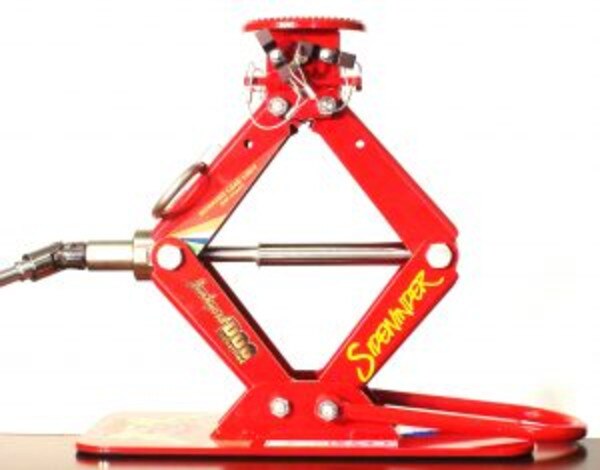

Junkyard Dog Industries Sidewinder

Third Party Tested to 15,000 lbs. // Maximum rated up to 7,500 lbs. Engineered Scissor Operation Specifically designed for Rescue Work

The Sidewinder Jack was engineered to hold greater weights with mission-built features that work under extreme rescue conditions, specifically for use on automobiles and light-duty trucks. Junkyard Dog Industries Sidewinder Jack is easy to set up, simple to use, has many applications in the rescue field, and is a proven and welcomed device to any rescuer’s arsenal.

Sidewinder Features:
  • Specifically Designed Scissor Operation for Rescue Work
  • Enclosed Threaded Rod
  • Roller Bearings for Smooth Action
  • Wide Base – Polymer Coated Bottom
  • Tilting Head for Angled Adjustment
  • Permanent Attached Four Point Conical Head and Interchangeable Flat Head with Textured Surface
  • Can be Used in Remote Applications with 1/2” Drive Extension Bars
  • Pivoting Carry Handle
  • Rate at WWL of 7,500 lbs.
  • Lifts from 5.25” to 13.25”
  • Attached Clevis for Securing with Ratchet Strap
  • Can be Operated Manually or with Power Tools (Sold Separately)

Standard Package Includes:
  • (1) Sidewinder
  • (1) Combination Flat Head & Pointed Head
  • (1) Speedy Wrench
  • (1) Universal

New Single Head Design for Quicker, Simper Operation NEW Sidewinder Head Features:
  • 2 Heads in 1 Convenient Configuration
  • Quicker to Change from Flat Head to Four Point Head – Smaller Points, Same Great Bite!
  • Flat Head Attached on Top of Pointed Head with a 6 lb. Magnet – Can Be Secured on Strut

Specifications

A scissor jack at heart, the Sidewinder has changeable heads, a carry handle, a wide polymer-coated base, an attachment clevis, a roller bearing drive train, a unique rod-in-tube screw mechanism, a carry handle, and safety pins allowing the head to pivot. The SideWinder is tested to hold over 15,000 pounds and is rated for a 7,500-pound working load limit. Used in pairs or a system of four, the Sidewinders can stabilize and lift a vehicle on all fours, on the side, or a roof. Powered by a hand-operated Speedy Wrench (included), 2,500 pounds of force can be generated. The drive receptacle accepts a ½” socket, so other drive devices can be used to create maximum force lift capabilities. A positive locking thread device, the Sidewinder, is very effective and can be used in conjunction with the Junkyard Dog Rescue Struts for optimal lifts. Weighing just 19 pounds, each Sidewinder provides eight inches (22 cm) of lift, enough space for safe and effective patient removal. The Sidewinder will be a welcome device to any rescuer’s arsenal.
