Key Fire Hose DURA-FLOW Rubber Covered Through-the-Weave Thick-Ribbed Attack Hose with Aluminum Couplings
Details

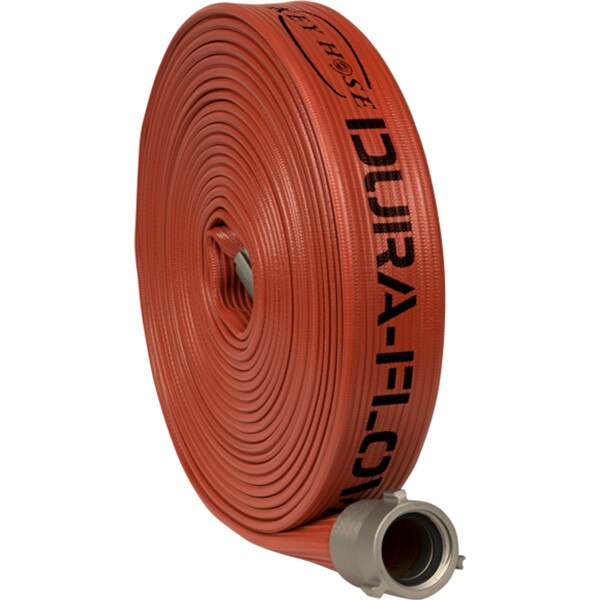

Key Fire Hose DURA-FLOW Rubber Covered Through-the-Weave Thick-Ribbed Attack Hose with Aluminum Couplings
**If you do not see a spec listed, please contact us to order**
The lightweight, small diameter, rubber covered attack hose that packs a big punch. The heat and chemical resistant, nitrile/PVC through-the-weave design provides peak performance and maximum flow. With a test pressure of 600 psi, Dura‑Flow clearly outperforms conventional rubber covered attack lines.
A rugged, thick ribbed outer jacket construction makes the hose highly resistant to kink, impact, punctures, cuts and abrasion.
Ozone resistant, maintenance-free and no drying required, make Dura-Flow a reliable weapon in a firefighter’s arsenal. NFPA compliant and UL listed.
Features:
- Lightweight, greater flexibility and virtually kink-free
- Raised thick rib construction, resists cuts, punctures, impact and abrasion
- Through-the-weave design for increased durability
- Heat, chemical and ozone resistant
- Easy to clean, easy to pack
- 10-year warranty
Hose Construction:
Hose shall be made from 100% high tenacity synthetic polyester yarn, circularly woven and completely protected by a through-the-weave extruded PVC/Nitrile rubber, forming a single homogeneous construction without the use of glues or adhesives of any type. Dura-Flow features a raised thick rib construction to aid abrasion resistance. Dura-Flow meets or exceeds all requirements of NFPA 1961 for attack hose. Dura-Flow shall carry a 10-year written warranty against defects in materials and workmanship
Lining Properties:
Ultimate Tensile Strength - Tensile strength of the lining and cover shall not
be less than 1200 psi.
Ultimate Elongation - 400% minimum.
Accelerated Aging Test - The tensile strength and ultimate elongation of the
vulcanized rubber compound which has been subjected to the action of oxygen
at a pressure of 300 psi (±10 psi) and a temperature of 158 °F (±18 °F) for a period
of 96 hours shall retain 60% of its originally stated properties.
Abrasion Resistance:
Hose shall withstand 10,000 cycles on the Taber Abrasion Machine (H-22 Wheel: 0.5 kg), without exposing the liner. Key Hose, on request, will supply written warranties that Dura-Flow hose meets a minimum 10,000 cycles. Other abrasion test results (UL, DIN, etc.) can be supplied on request of purchaser.
Cold Resistance:
Hose shall have a capability of use down to -35 °F. Hose shall have no apparent damage to cover, reinforcement or lining when subjected to the following cold flexibility test: a 50' length of dry hose is to be firmly coiled and placed in a cold box at -35 °F for a duration of 24 hours. Immediately after removal of the hose from the box, hose should be uncoiled and laid out by one operator.
Ozone Resistance:
Hose shall show no visible signs of cracking to the lining or cover when tested in accordance to ASTM D518 Procedure B (100 pphm / 118 °F / 70 hours).
Chemical Resistance:
Exposure to sea water and contamination by most chemical substances, hydrocarbons, oils, alkalis, acids and greases must have no effect on the short or long term performance of the hose. A chemical resistance chart is available and Key Hose will supply specific chemical resistance data on request of purchaser for unique applications.
Couplings:
Dura-Flow coupling options are as required by purchaser, expansion ring threaded, Storz clamp ring, etc. Barcode recess available at additional charge.
Performance:
The minimum burst test pressure, when tested in accordance to NFPA 1961, on all Dura-Flow diameters shall be 900 psi / 62 bar. Service test pressures stenciled on the hose shall be in accordance with current minimum requirements of NFPA 1962. *A valid UL/ULC Underwriters 500 psi / 34 bar listing shall be in force. Lengths available up to 300'.
Specifications
Diameter | Part No. | Service Test | Proof Test | Burst Test | Bowl Size | Weight Uncoupled |
1" | RC10-600 | 300 psi | 600 psi | 900 psi | 13⁄16" | 0.15 lbs/ft |
1½" | RC15-600 | 300 psi | 600 psi | 900 psi | 113⁄16" | 0.24 lbs/ft |
*1¾" | RC17-600 | 300 psi | 600 psi | 900 psi | 115⁄16" | 0.28 lbs/ft |
2" | RC20-600 | 300 psi | 600 psi | 900 psi | 2¼" | 0.32 lbs/ft |
*2½" | RC25-600 | 300 psi | 600 psi | 900 psi | 213⁄16" | 0.48 lbs/ft |
- Dura-Flow is made from 100% high tenacity synthetic polyester yarn, circularly woven and completely protected by a through-the-weave extruded PVC/Nitrile rubber, forming a single homogeneous construction without the use of glues or adhesives of any type.
- Dura-Flow is guaranteed to withstand 10,000 cycles on the Taber Abrasion Machine (H-22 Wheel: 0.5 kg) without exposing the liner.
- Dura-Flow coupling options are as required by purchaser, expansion ring threaded, Storz clamp ring, etc. Barcode recess available at additional charge.
- The minimum burst test pressure when tested in accordance to NFPA 1961 on all Dura‑Flow diameters shall be 900 psi / 62 bar. Service test pressures stenciled on the hose shall be in accordance with current minimum requirements of NFPA 1962.
Warranty Information:
Dura-Flow hose shall carry a 10-year written warranty against defects in materials and workmanship.
