Kochek Suction Hose Test Kit

Kochek Suction Hose Test Kit

Allows NFPA 1962 A.7.5 compliant testing, with this quick simple to use and highly portable tester. The smart Lexan disk design accommodates all connection types and requires no threads or fastening agents.

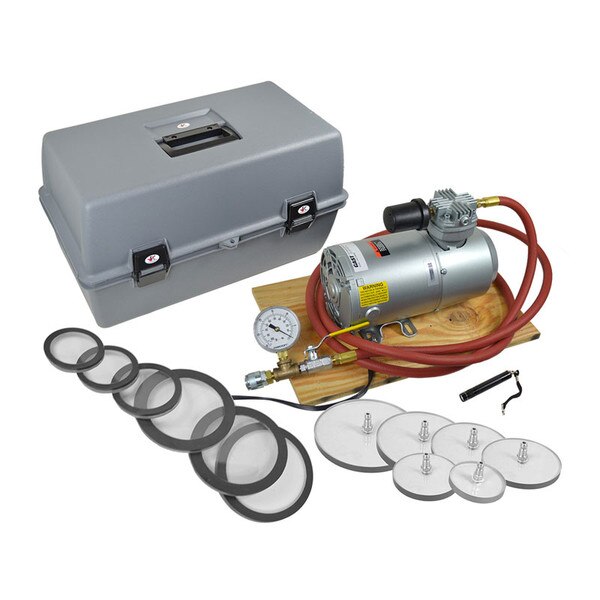

Kit Includes:

• Vacuum pump
• 6 Lexan Male gasket plugs (to create the vacuum)
• 6 Lexan quick attachable Female / vacuum ends
• Lexan pieces fit: 6", 5", 4.5", 4", 3" and 2.5" hose coupling
• Flash light
• Plastic carrying case for easy transport and storage

Operating Instructions:

• Simply place the appropriately sized Lexan disks over the female and male connections when you start the pump.
• Watching the gauge, isolate the system with a quarter turn of the valve once the desired level of vacuum is achieved and shut off the pump.
• While the vacuum holds each disk in place, the clear Lexan gives you the ability to visually inspect inside of the hose with the flashlight for de-lamination or other damage.
• When time is up, return to atmosphere with another quick turn of the valve and you are done!
