LEVR Escape System - Flash.G Escape Anchor
Compact. Reliable. Intuitive.
The most compact escape system available.
The LEVR Escape System is built around CMC’s patented LEVR Descender, a next-generation device that uses its lever-shaped handle for progressive descent control, fast and easy horizontal pay-out, reliable edge transition, and intuitive operation. Designed to assure rapid emergency egress with safe, controllable descent, this escape system is now offered with the option of either the gated Flash.G Escape Anchor.
CMC’s Flash Anchors are structurally optimized to be strong, robust, lightweight, and low-profile. Both the Flash.G are classified to NFPA standards as Emergency Escape Anchors and Escape Descent Control Devices (DCDs), allowing advanced users to lower a victim and then lower themselves, a sequence referred to as the Byrne Technique after Firefighter and CMC School Instructor Kelly Byrne. Advanced users interested in the Byrne Technique should check out CMC’s LEVR BT Escape System.

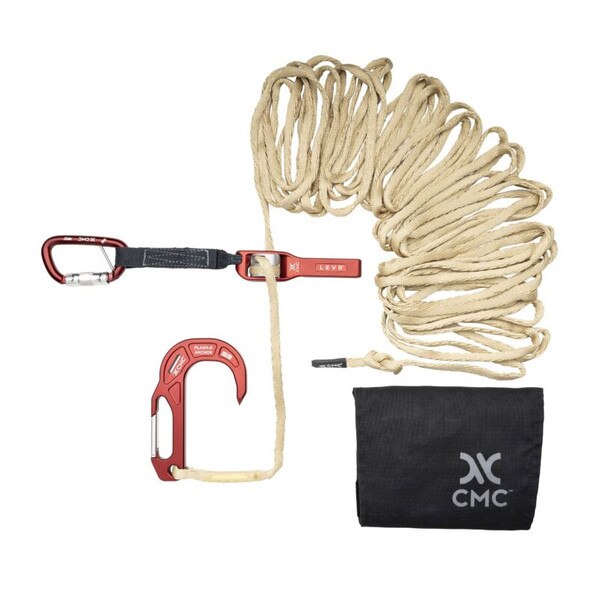

The LEVR Escape System also includes 50 feet of proprietary CMC Fire Escape Web™, made of 100% Technora® fiber for high strength, durability, heat-resistance, and superior packability. A low-profile Fire Escape Bag allows right or left hand deployment and attaches securely to a belt or harness. The personal tether and aluminum auto-locking carabiner keep the system connected to an attachment point and ready for immediate deployment. Extremely compact, the LEVR Escape System integrates with turnout gear and leaves the user uninhibited.
Flash.G Escape Anchor
Classified to NFPA standards as Emergency Escape Anchors and Escape Descent Control Devices
Structurally optimized to be strong, robust, lightweight, and low-profile
Ergonomic shape provides a firm, full-hand grip for rapid deployment and placement
Rated to 13.5 kN MBS, even when loaded at the tip, yet weighs under 8oz
Tip designed for superior embedment, helping seat anchor and prevent rotation
Wide throat provides high compatibility and stability when hooking structures
Flash.G gate is solid, smooth acting, and easy to manipulate without catching on gear
LEVR Descender (Reeved with Fire Escape Web)
Engineered for easy horizontal payout of web and reduced impact force if shock loaded during bailout
Smooth and reliable edge transition, rolling over the lip to minimize potential hang-ups at the window sill
Auto-locking for hands-free exit, and has an ergonomic non-slip handle for gloved operation
Smooth, progressive descent control, can be used in 1 or 2 handed method while controlling tail
Weight: 190 g (6.7 oz); Dimensions: 158 L x 38 W x 31 H mm (6.25 L x 1.5 W x 1.25 H in)
Personal tether and auto-locking ProTech™ carabiner for remaining attached to the system
Patented. Made in USA.
Fire Escape Web (50 ft)
15.2 m (50 ft) of 11 mm of proprietary web (UL Classified to NFPA 1983 – FR Escape Web)
100% Technora for strength, durability, and heat-resistance
Web dramatically reduces the space required for storage

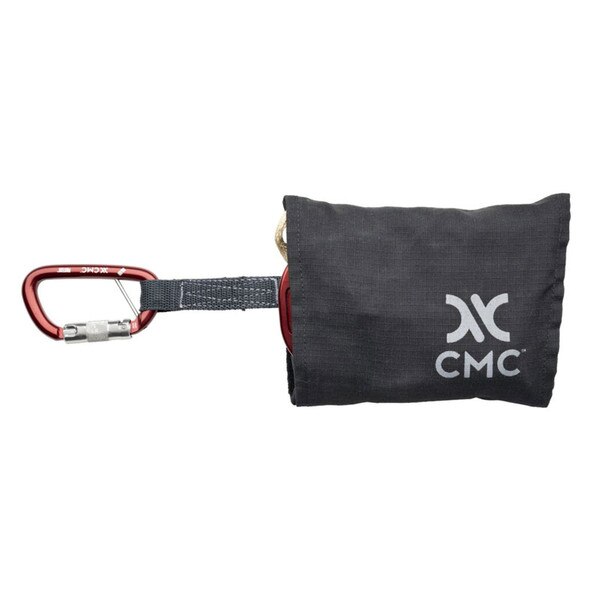

Fire Escape Bag
Low-profile Nomex® side carry bag made for right or left hand deployment
Attaches securely to a belt or harness with fasteners and tunnel loops
We offer CMC LEVR manufacturer-authorized training.
