LifeRamp Rescue Systems - WMAA Edition
Details
LifeRamp Rescue Systems - WMAA Edition
USED BY WMAA

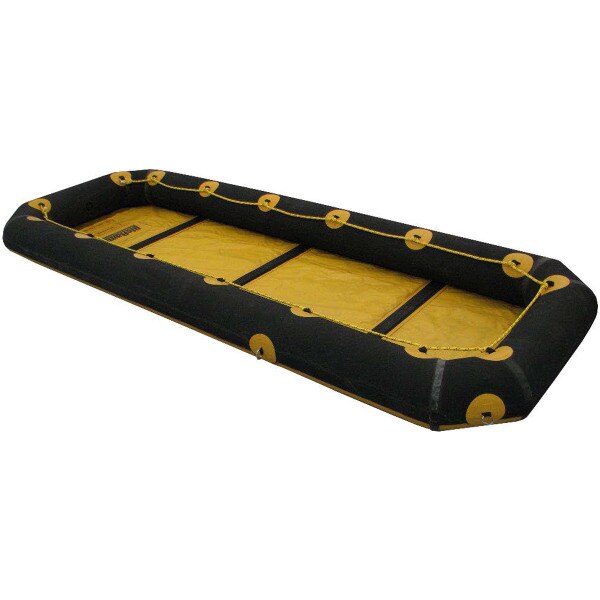

LifeRamp is a great system for that immediate, urgent need. Compact, it is design to fit in multiple configurations of emergency responder vehicles, or for those on the water, on their boats. Easy to carry, the multiple handles on the LifeRamp permit easy carrying to shore by a single person for the shorter systems, and two people for the longer ones. User-repacked, no requirements to return to OEM or repair center for repacking.

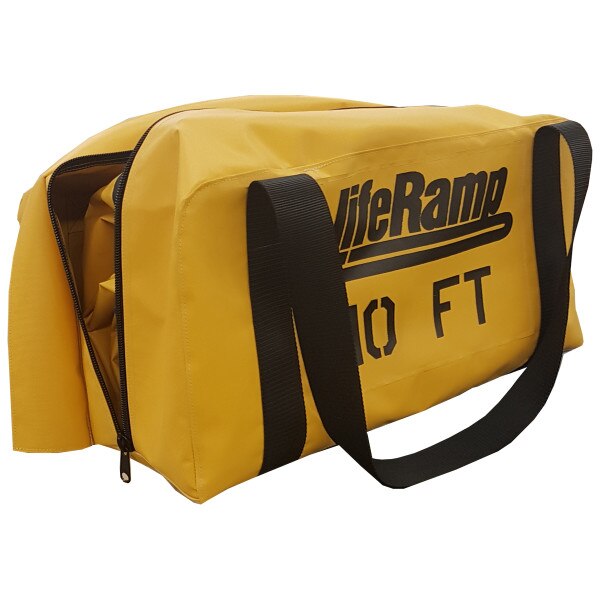

This special edition permits for a more compact storage option with a small, narrow valise. To use this version, please note that battens are removed for packing, and must be re-inserted prior to using in a rescue.
Applications:
- Water Rescue
- Ice Water Rescue
- Mud & Unstable Terrain Rescue
Specifications
- Color: Black Tube Structure, Yellow Floor and patches
- Chambers: Two / Dual (2)
- Dimensions: 44" Width x 8.6 " Height x 10' Length
- Weight: 28 lbs.
- Load Limits: 1,100 lbs.
- Cylinder Carrier: Included
- High Pressure Inflation System: Rear end, single connect, inflates both chambers simultaneously
- Inflation Time (cylinder): +/- 1 minute
- Inflation Time (Air inflation): 1-5 Minutes
- Optimal Air Pressure: 2.6 P.S.I
- Cleaning: Mild detergent, water and sponge dry. Lubricate hose fittings, D-Ring and system quick release (DC-55 grease). Tool needed: ¼’ Allen wrench.
- Material: The chambers are constructed with black neoprene coated material. The floor (yellow) is constructed of coated HypalonTM and has reinforcements (fiberglass baton).
- Replaceable Component: Pivot Line, Valise, 6341 pressure relief valve; 63408 Universal top up valve, 6617-001 Non-Tapered Battens
- Accessories: 5513-LR Repair Kit; 6457 Quick Connect ¼” fitting; 6601-003 inflation hose assembly, 6314 Top-up valve adapter, 6366 Socket Tool
- User Manual: 6623
- Markings: All located on floor: Silkscreen: “LifeRamp”; “Tulmar – Hawkesbury, Ontario, Canada”; & Stencil: “S/N: 6001-XX-YY-ZZZZ” / Valise: “LifeRamp” plus “10 FT”
