Partner Saw Package Basic Utility - Husqvarna

Husqvarner/Partner Saw Package Basic Utility

• Partner K-12 FD Rescue 14" Saw Package
• Partner Saw Field Kit
• Partner Steel Saw Box
• Saw Utility Box

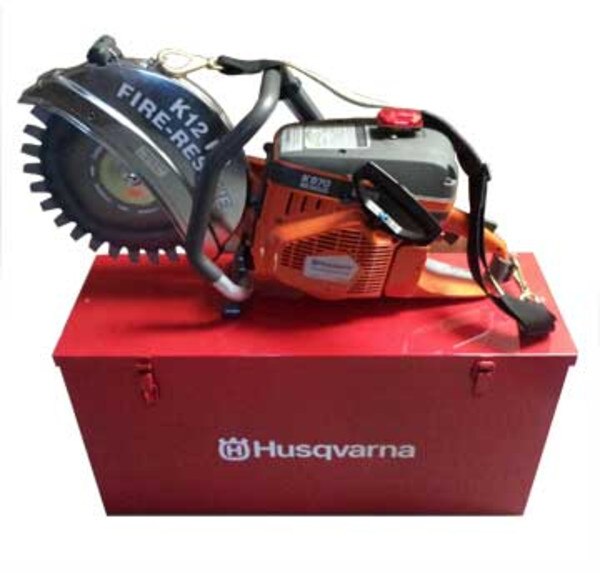

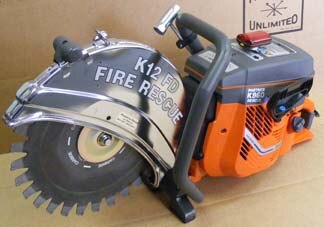

Partner Saw K-12 Fire Department Rescue Fire Saw Package

This model is equipped with:

• Night Eye - A Streamlight Cyclone alkaline flashlight mounted to the bar
• Carry Sling - Heavy duty, adjustable, with reflective stripe
• Carbide Tip Blade - 14" 30-Tip
• Flasher Warning Light - Red LED mounted to top of the saw

The Partner K-12 FD answers the call for almost every cutting need on scene. It is the Worlds Most Advanced Rescue Fire Saw...

Ventilation Jobs: Residential, Commercial, Industrial, Flat Roofs, Trench Cuts, etc.

Forcible Entry: Security Bars, Roll Down Doors, Fireproof Doors, Vacants, HUD Reinforced Doors/Windows, etc.

Heavy Rescue: Building Collapse, Industrial Accidents, Natural Disasters, Recoveries, etc

Extrication: Aircraft, Buses, Tractor-Trailers, Passenger Cars, Auto Fires, Farm and Industrial Accidents, etc.

"FD" Modifications:

• Chrome Blade Guard - For durability and optimum visibility
• Mounted Sling Assembly - Adjustable, quick-release strap allows the operator to carry the tool over one shoulder, allowing full freedom of movement and leaving both hands free
• Decompression Valve - Reduces the force necessary to start the saw by 50%
• Large D-Grip Starter Handle - Large grip handle for mobility of use with firefighter gloves
• Active Air Filtration - Internal and fully sealed, three stage filter system which protects against fireground elements
• ReadyStart, Momentary Stop Switch - Push type switch that simplifies stopping procedure and resets for subsequent starts

Technical Data

• Engine: Air-Cooled, two-cycle
• Displacement: 94 cc
• Power: 6.1 hp
• Weight (Without Blade): 22.9 lbs.
• Guard: 14-inch
• Cutting Depth: 5"
• Arbor: 1" Standard

Cutting Information: For roof ventilation on a fire scene, using the 14" 24-tip Carbide Blade, the cutting depth will be 3-inches. A (14") 30-tip Carbide Blade has a cutting depth of 5-inches.

Note: Owner's manual calls for a 40:1 fuel mixture. In many cases, 50:1 ratio provides for easier start-up.

The Partner Saw Field Kit provides the basic necessities for your Partner Saw for "out in the field" operations. This items are designed to be stored in our SAW UTILITY BOX or S.U.B.

This KIT includes:

• (2) Abrasive Blades
• Goggles
• Hearing Protection
• Gas Can
• Dust Mask
• Can of STA-B
• 2-Cycle Oil
• Spare Belt
• Air Filter
• Foam Filter

Black Steel Saw Box is designed for the PARTNER K-12 / K-950 saw, and can fit a smaller saw instead with Partner logo, Hinge lock with eye (for locking if necessary). Weight is 32 lbs. Dimensions: 32" x 11" x 17"

Saw Utility Box (S.U.B.) is a full compartmentized diamond plate box that is designed to store blades and maintenance parts for your fire department saw. Storage for: - 20+ Blades, Gas Can, Filters, Belts, Oil and Lubricants, Spark Plugs, Adjustment Tools.

• Constructed of aluminum diamond plate
• Hinge lock with eye (for locking if necessary)
• Weight is 11 lbs. (empty)
• Dimensions are 15" x 15" x 9"
