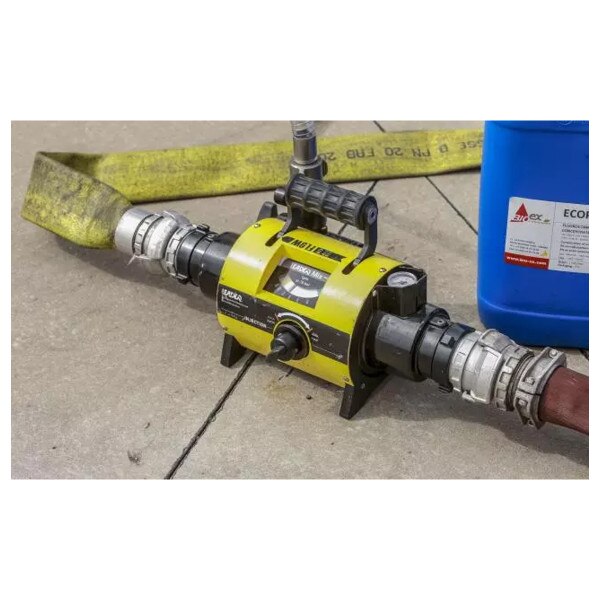

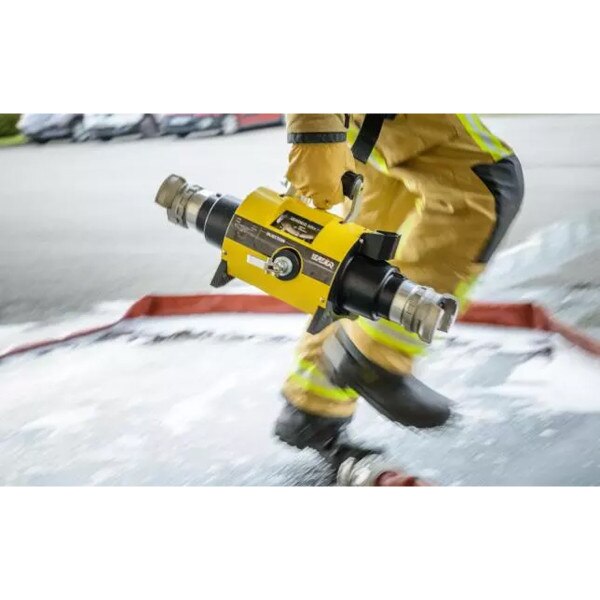

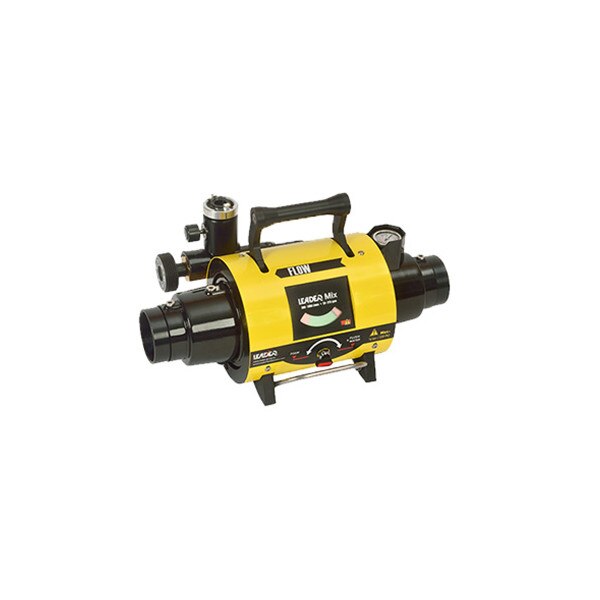

Portable Automatic And Autonomous Foam Proportioner LeaderMix 50-275G



This automatic proportioner allows precise dosing of all types of foam concentrates between 50 and 275 gpm with full autonomy.



Perfect compromise between the conventional venturi proportioner and the electronic foam dosing system, LeaderMIX 50 – 275G allows precise dosing of all types of foam concentrates even during high flow rate variations. Starting at 75 psi, it allows the accurate dosing of the foam concentrate from 0.3% to 6% over a flow rate range from 50 to 275 GPM. Automatic, autonomous, and requiring almost no maintenance, it is very easy to use and has a bypass position that reduces pressure drops when the use of additive is not necessary.



AUTOMATIC & AUTONOMOUS INDUCTOR:

  • Ideal compromise between conventional venturi inductors and traditional automatic systems because of the wide range of flow rates and injection ratios available
  • Autonomous: Does not require power supply
  • Reduced maintenance due to the simple mechanical design



LARGE RANGE OF USE:

  • Replaces 4 conventional inductors (60, 95, 125 and 250 GMP)
  • Wide range of flow rates from 50 to 275 GMP
  • Wide operating pressure range from 75 to 230 PS



REDUCED CONSUMPTION OF INJECTED FOAM CONCENTRATE:

  • Accurate metering of foam concentrates from 0.3% to 6%
  • Adapts itself automatically to the selected flow rate at the nozzle



CREATE SUCTION EVERY TIME FOAM IS DESIRED:

  • Instant injection of foam concentrate even during Pulsing
  • Works even below 140 PSI
  • Independent of flow rate variations



ADDITIONAL FIELD BENEFITS:

  • Water position: Below 200 GPM, it generates less pressure losses in the water position than traditional venturi injectors: only 10 PSI pressure loss at 125 GPM

Specifications

  • Operating flow rate: 50 to 275 GPM
  • Operating pressure: 75 to 230 PSI
  • Proportioning rates: 0.3%, 0.5%, 1%, 3%, 6%
  • Inlet and outlet couplings: Swivel coupling
  • Inlet and outlet threads: 2.5’’ NH F / 2.5’’ NH M
  • Storage temperature: -4°F to +140 °F
  • Operating temperature: Above freezing to +120 °F
  • Pressure loss: 35%
  • Pressure gauge at inlet: Yes
  • Weight: 31 lbs.
  • Dimensions L x H x W: 19.1 x 9.3 x 10.8’’
  • Carrying handle: Yes
  • Suction wand: Suction hose equipped with a pick up tube – L 6.5’ / 1’’D Storz
  • Input foam concentrate supply: D Storz quick connection
  • Non-return valve on foam inlet: Yes
  • Flush Button: Yes
