SMC Figure 8 with Ears

SMC Figure 8 with Ears

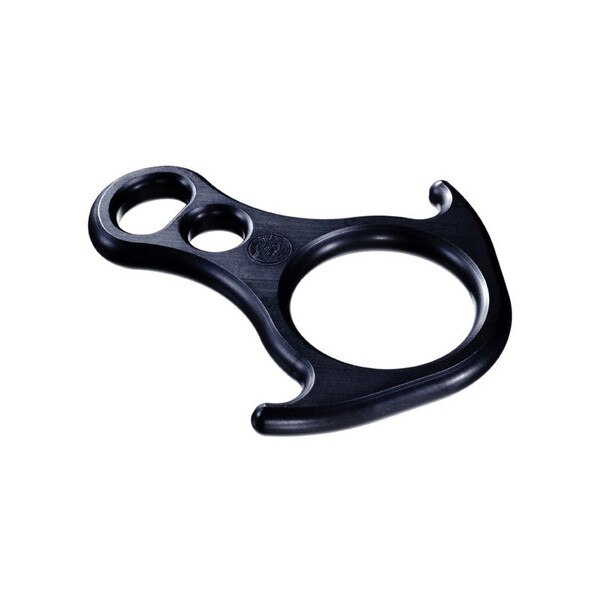

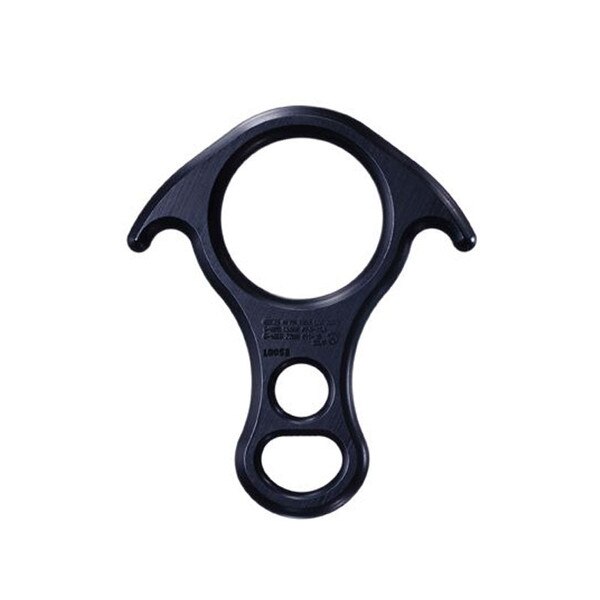

The Russ Anderson/SMC Figure 8 (with ears) is one of the most popular full-sized descenders used by professionals throughout the rescue, fire service, police/tactical and industrial/work related markets. This is the smaller of two sizes of Figure 8 (the other is a non-NFPA model) this model is ideal for working with a single or a double wrap of rope up to 1/2'' in diameter. The ''ears'' of this design help to eliminate the potential for ropes slipping up into a girth hitch and also make it easier to ''tie off'' when on rappel. product. The oval carabiner hole doubles as a belay plate for up to 1/2'' rope. Machined from 1/2'' thick, solid aluminum, heat-treated bar and then finished with a very tough, hard-anodized finish for extra durability.

Certifications

• Certified by Underwriter’s Laboratories to exceed the NFPA 1983 “T” - Technical Use rating on 9.5mm to 12.5mm rope.
• Certified by Underwriter’s Laboratories to exceed the NFPA 1983 “G” - General Use rating on 11mm to 16mm rope.

Specifications:

• Material: Aluminum
• Finish: Hard-coat Anodized
• Dimensions: 6” x 5.25” x 0.5”
• Weight: 6.5 oz (184g)
• Max. Rope size: ≤ 5/8" (16mm)
• NFPA1983 T Certified = 13.5kN (3034 lbf) - 9.5mm to 12.5mm Ropes
• NFPA1983 G Certified = 22kN (4945 lbf) - 11mm to 16mm Ropes
• Made In USA
