Site Drainer Pit Boss 102V 1HP Submersible Dewatering Pump / Sump Pump with Non Clogging Stainless Steel Screen and Internal Vertical Float
Details
Site Drainer Pit Boss 102V 1HP Submersible Dewatering Pump / Sump Pump with Non Clogging Stainless Steel Screen and Internal Vertical Float

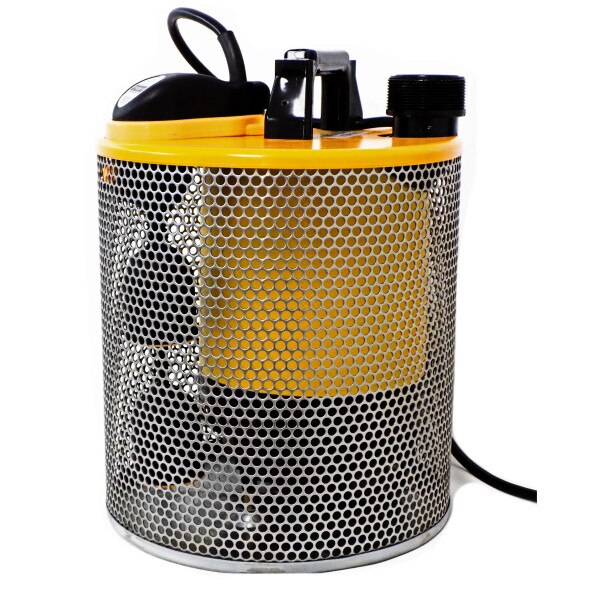

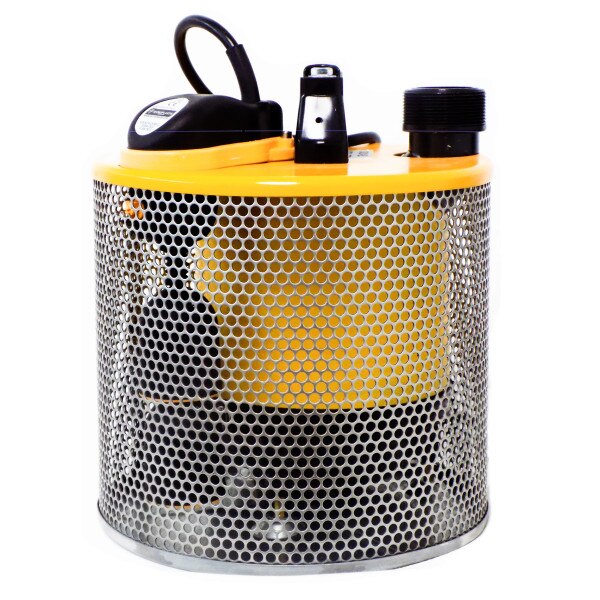

The Pit Boss 102 V 1Hp (750w) Submersible Pump is built with an integrated, internal Vertical Float. The 102 V works in confined spaces and keeps working no matter how debris filled the water gets. Portable and Lightweight but designed for tough environments. The Pit Boss 102 V can suck water out of the most debris filled water. 83 Gallons Per Minute with 5’ lift and maximum Head of 49’. It comes with 33’ power cord, runs off 110-Volts, draws 10.7 Amps, and has 2” NPT male discharge flange to accommodate lay flat hoses. Debris in water will not interfere with the operation of the unique integrated vertical float inside the non-clogging cage. The Pit Boss is perfect for construction sites, emergency flood water drainage, flooded basements, large debris filled pools, and any commercial or general de-watering jobs. This pump will get the job done.
Features:

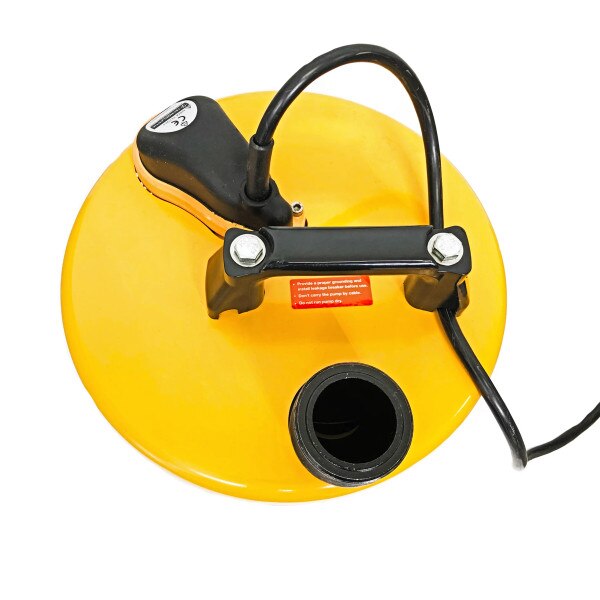

- 2” NPT male discharge flange to accommodate lay flat hoses
- Portable and Lightweight yet rugged enough for the toughest jobs
- Patented stainless-steel cage with ¼” openings that surrounds the pump preventing rocks, rope, and other debris from clogging the pump impeller, rendering trouble-free, long lasting operation
- Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and extended dry-run capability
- Pumps up to 4980 gallons per hour at 5 ft. lift, emptying sump pit in seconds
- Integrated vertical float allows for auto on operation at 7” of water, auto off operation at 2” of water
- Pump motor is housed in watertight casing, conforms to class F insulation; 110-Volts motor, draws 10.7 Amps. Motor has a built-in thermal protector which protects against overheating and extended dry run

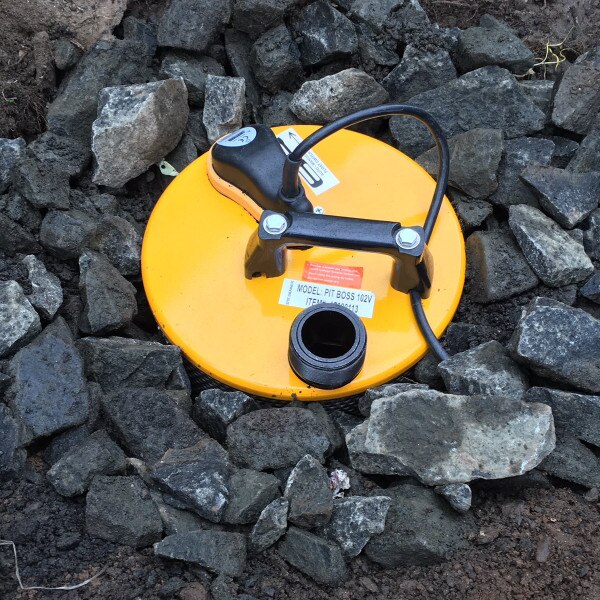

- Perfect for commercial and industrial site dewatering, construction sites, civil engineering projects, basements, parking lots, residential, removing residue water

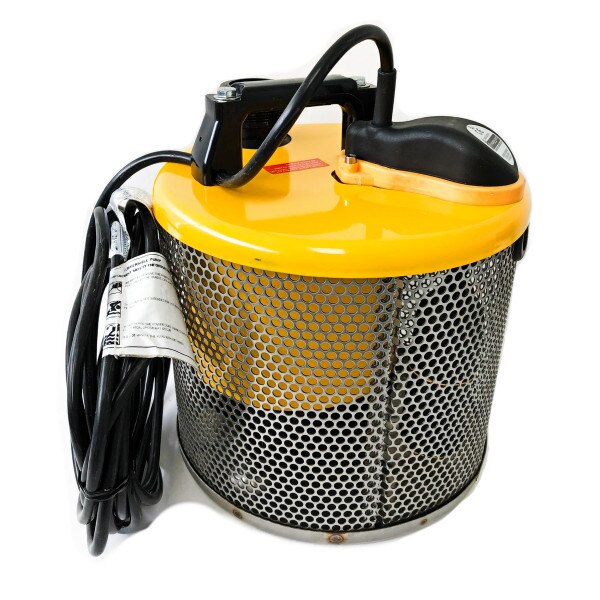

- 33 ft. power cord, 2” male discharge flange, easy-to-grip handle makes this pump easily portable
- Perfect for Elevator Shaft Sump Pit, as per National Elevator Code: ANSI A17.1

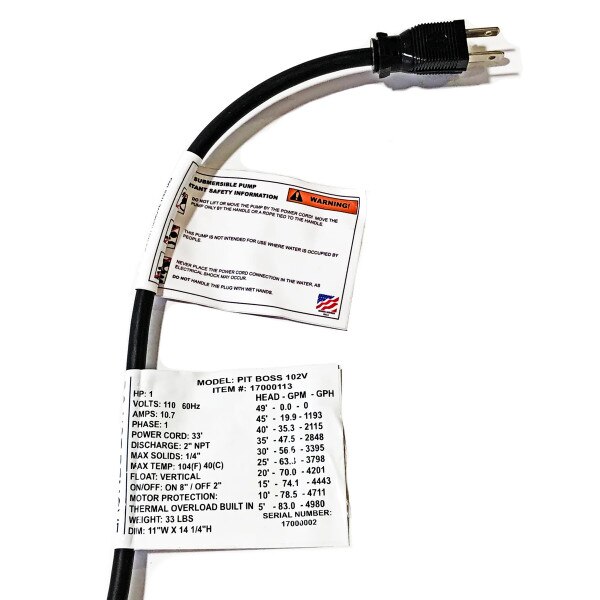

Specifications
- Motor Output HP/Watts: 1.0 HP
- Voltage: 110
- Running Amps: 10.7
- Phase: Single
- Power Cord Length: 33 ft
- Discharge Connection Diam: 2" NPT
- Max Solids Diam: ¼"
- Max Temp.: 104F
- Impeller Material: Polyurethane
- Float: Integrated Vertical Auto On/Off
- On/Off Heights: On at 7", Off at 2"
- Motor Protection: Thermal Overload Built-in
- Internal Lubricant: Turbine Oil VG32 (150 CC)
- Weight: 33 lbs.
- Product Dimensions: 11" Diam x 14.25" H
Discharge Flow Rate:
