Site Drainer SD750T 1HP Stainless Steel Submersible Dewatering Pump / Sump Pump with Non Clogging Stainless Steel Screen and Tethered Float

SKU SD-SD-750T
(0) No Reviews yet
$913.99

Currently Unavailable

Details

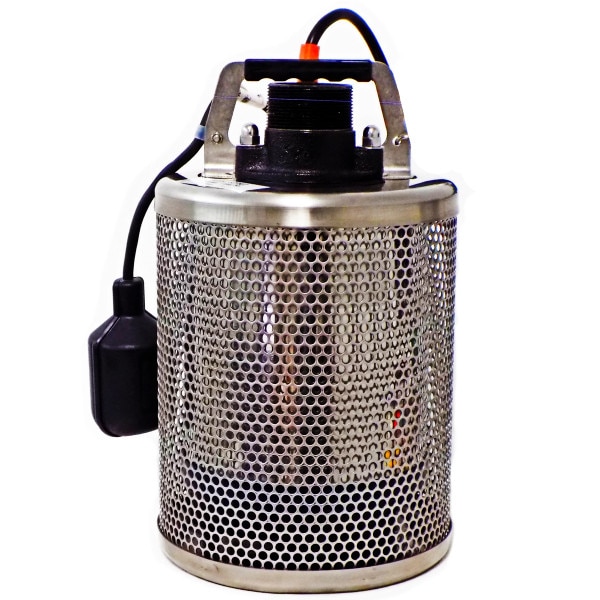

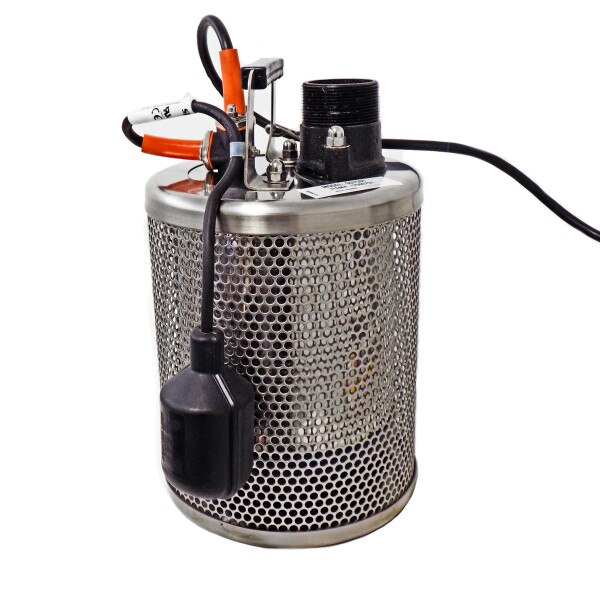

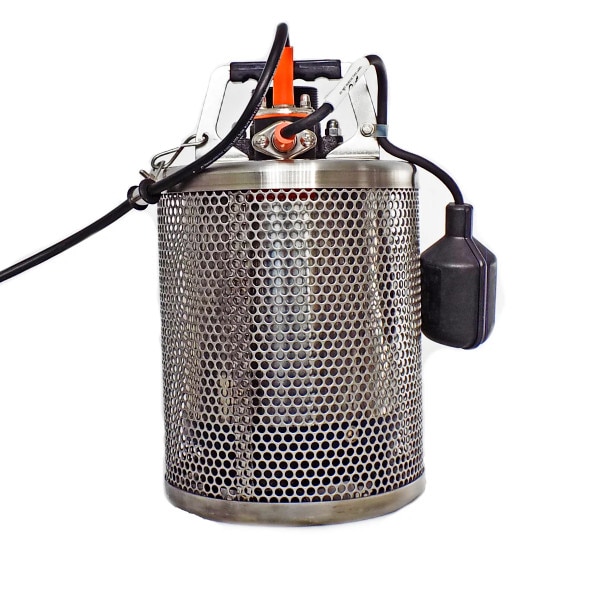

Site Drainer SD750T 1HP Stainless Steel Submersible Dewatering Pump / Sump Pump with Non Clogging Stainless Steel Screen and Tethered Float

The SD 750 T, 1 Hp (750Watt) is a fully submersible pump, designed to resist lightly contaminated water or saltwater. With the internal pump housing built from 304 Stainless Steel, an incredibly strong Polyurethane Impeller, and all encased in our patented 304 Stainless Steel cage the SD 750 T comes with a Tethered External Adjustable Float. The 750 T works vertically or horizontally and keeps working no matter how debris-filled the water gets. 83 Gallons Per Minute at 5’ lift and maximum Head of 49’. It comes with 33’ power cord, runs off 110-Volts, draws 10.7 Amps, and has 2” NPT male discharge flange to accommodate lay flat construction hoses. Perfect for Saltwater, water treatment plants, marine salvage yards, barges, scrapyards, carwashes etc. Our toughest pumps are ready for whatever you throw at them.

Features:

  • 2” NPT male discharge flange to accommodate lay flat construction hoses
  • All non-clogging, debris resistant operation
  • Designed to resist lightly contaminated water or saltwater
  • Stainless steel construction makes pumps more resistant to corrosion
  • Patented stainless-steel cage with ¼” openings that surrounds the pump preventing rocks, rope, and other debris from clogging the pump impeller, rendering trouble-free, long lasting operation
  • External float can be adjusted to automatically turn the pump On and Off at various heights
  • Pumps up to 4980 gallons per hour at 5’ lift, emptying sump pit in seconds
  • Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low water levels and dry-run capability
  • Pump motor is housed in watertight casing, conforms to class F insulation; 110-Volts motor, draws 10.7 Amps. Motor has a built-in thermal protector which protects against overheating and extended dry run
  • 33 ft. power cord, 2” male discharge flange, easy-to-grip handle makes this pump easily portable

Specifications

  • Motor Output HP/ Watts: 1.0HP
  • Voltage: 110
  • Amps: Running: 10.7
  • Phase: Single
  • Power Cord Length: 33 ft.
  • Discharge Connection Diam: 2" NPT
  • Max Solids Diam: ¼"
  • Max Temp: 104F
  • Impeller Material: Polyurethane
  • Float: Tethered Float
  • On/Off Height: Adjustable
  • Motor Protection: Thermal Overload Built-in
  • Internal Lubricant: Turbine Oil VG32
  • Weight: 39.25 lbs.
  • Product Dimensions: 8.5" Diam x 14.5" H

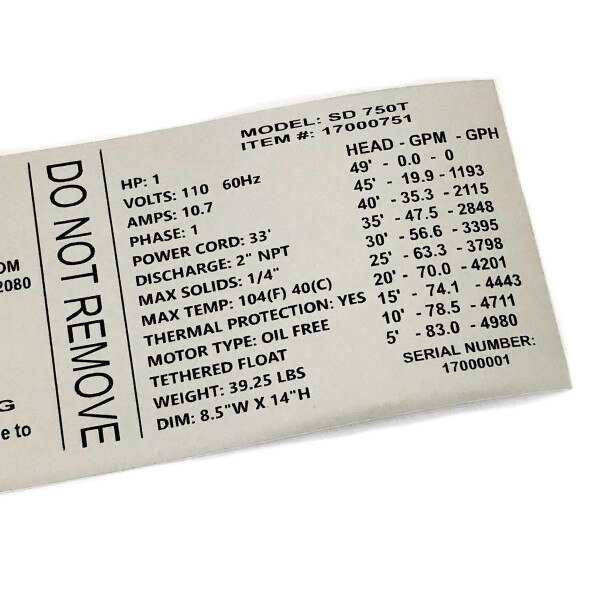

Discharge Flow Chart:
