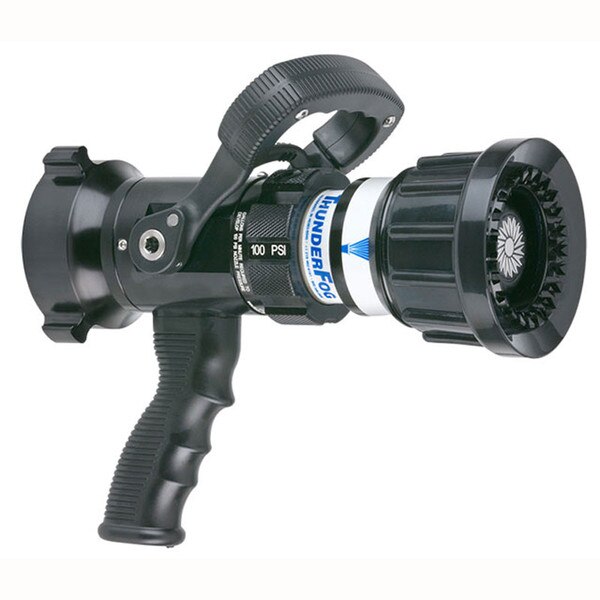

Thunderfog Nozzle 2.5" NH Selectable Gallonage Series

SKU TFT-JTS250
(0) No Reviews yet
$1,165.00 to $2,018.00

Details

Thunderfog Nozzle 1.5" NH Selectable Gallonage Series

Selectable gallonage nozzle with five flow settings of 95, 125, 150, 200, and 250 gpm @ 100 psi (360-470-570-750-950 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Pistol grip is mounted below the valve. 2.5" NH swivel rocker lug coupling is standard. FM Approved

Playpipe Option:
Smallest, most compact nozzle/playpipe combination available for use on 2.5" or 3" lines. Selectable gallonage nozzle with five flow settings of 95, 125, 150, 200, and 250 gpm @ 100 psi (360-470-570-750-950 l/min @ 7 bar). All lightweight materials, hardcoat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Lightweight hardcoat anodized aluminum alloy for maximum corrosion and wear. Nozzle is attached to valve and is not removable. Rubber coated playpipe handles are designed to reduce fatigue. 2.5" NH full-time swivel rocker lug coupling is standard. FM Approved



Specifications

  • Flow Control Method: Selectable Flow at a pressure (constant gallonage, flow does not change with pattern)
  • Flow Rate: 95 & 125 & 150 & 200 & 250 gpm (360 & 470 & 570 & 750 & 950 l/min)
  • Coupling Size (Nozzles): 2.5 inch (65mm)
  • Coupling Style (Nozzles): Rocker
  • Coupling Swiveling/Rigid (Nozzles): Swivel (full time, even after tightening)
  • Pressure: 100 psi (7bar)
  • Nozzle Body Style: Nozzle with shutoff and pistol grip
  • Valve Design: Ball Valve (Stainless)
  • Valve Actuation Method: Horseshoe (Injection Molded Nylon w/ Colored Handle)
  • Fog Pattern Method: cut metal teeth (fixed)
  • Nozzle Bumper Material: Rubber - press fit
  • Certifications: NFPA/FM
  • Foam Expansion Performance: N/A
  • Pattern Actuation Method: Manual
