Allegro 8" Axial Explosion Proof Plastic Blower
Details

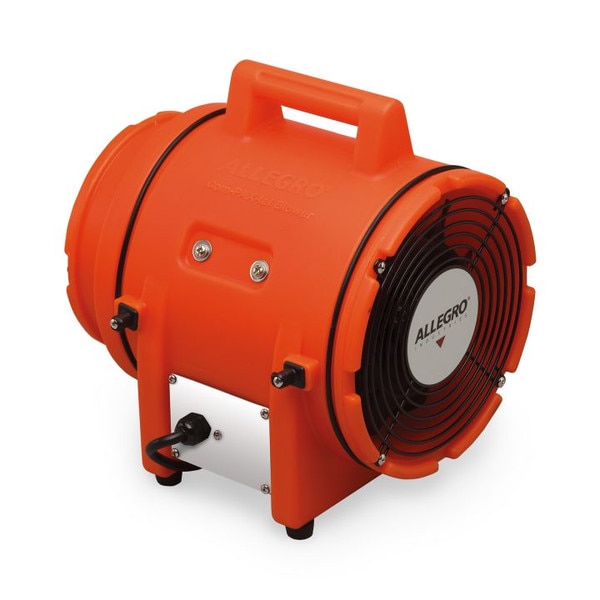

Allegro 8" Axial Explosion Proof Plastic Blower

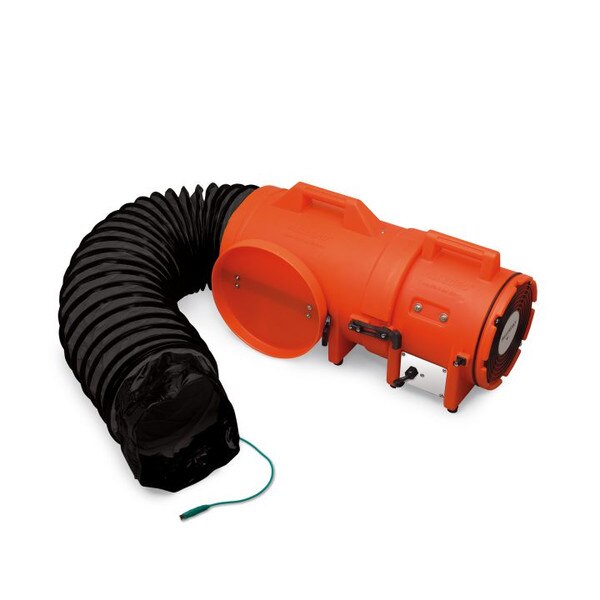

High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Available as a blower only or complete unit with 15', 25', or 50' of statically conductive ducting and storage canister. Canister attaches to the intake or output of the blower for suction or ventilation. It is designed for explosion proof environments. Certified to CSA Standard C22.2 No. 113.
High output from a compact axial blower, designed for easy use and storage without sacrificing airflow. Available as a blower only or complete unit with 15', 25', or 50' of statically conductive ducting and storage canister. Canister attaches to the intake or output of the blower for suction or ventilation. It is designed for explosion proof environments. Certified to CSA Standard C22.2 No. 113.
Specifications
Construction:- New compact canister in 9538-15 and 9538-25 models is the lightest and smallest in the industry!
- Polyethylene housing and canister assembly
- Lightweight, corrosion-, UV-,and chemical-resistant
- Super quiet "safety orange"
- Bottom enclosure to protect electrical components
- Carry handle molded into blower and canister housing
- Steel powder coated grill
- NOTE: EX blowers require an explosion-proof socket
Motor:
- HP: 1/3
- Certifications: UL Recognized, CSA Certified
- Voltage/Hz: 115V, 60 Hz, Single Phase
- Max RPM: 3250
- Current Draw: 2.2A
- Cord: 25' SJOOW 18/3 AWG 300V, medium duty
- Plug: NEMA 115V, 20 amp, "ECP" Type
Fan:
- Polypropylene six blade fan, aluminum hub
Ducting:
- Black single-ply lightweight vinyl/polyester coated with neoprene 250 F temp resistant
- Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
- WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used
- Class 1, Divisions 1 & 2, Groups C & D
- Class 2, Division: 1 & 2, Groups: F & G
Dimensions:
- 9538: 13.75" x 12" x 13.75"
- 9538-15: 26" x 13.5" x 14.5"
- 9538-25: 26" x 13.5" x 14.5"
- 9538-50: 32" x 13.5" x 14.5"
Flow Rates:
- Free Air: 900 CFM
- One 90 degree bend: 650 CFM
- Two 90 degree bends: 625 CFM
