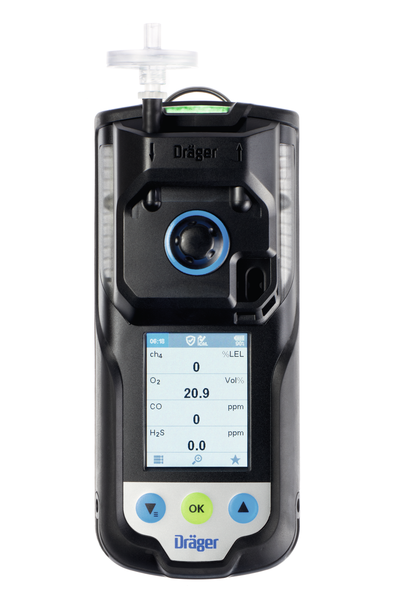

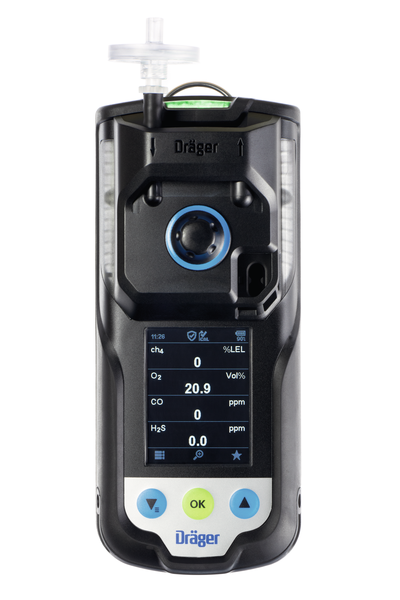

Draeger X-am 3500 LEL/CO/H2S/O2
Details
Draeger X-am 3500 LEL/CO/H2S/O2
*Used by the FDNY*
The Draeger X-am 3500 was especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, NO2, and SO2. The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling.
Specially designed for use with a pump, optimized for clearance measurement
The Draeger X-am 3500 is equipped with a very powerful pump. It can be connected with hoses of up to 148 feet in length. A pump adapter makes it easy to switch between diffusion and pump mode at any time. This means the pump is only operated when you actually need it. That saves energy reduces wear and tear, and thereby extends the lifespan of the pump.
The performance of selected sensors has been verified by an external approval body within the scope of the measurement performance approval (EN 60079-29-1), for combustible gases and vapours for methane, propane and n-nonane, among others.
Handy and durable, the Drager X-am 3500 is intuitive to operate single-handedly using three function keys. The easy-to-read colour display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.
Clear signaling design
The signal system of the Draeger X-am 3500 is based on a clear colour code, in accordance with the requirements of the EN 60079-29-1, EN 45544-1 and EN 50104:
- Red light = Gas alarm
- Yellow light = Device-related alarm (ex. Low battery)
- Green light = Device is ready to use
The green glow of the D-light allows you to see from a distance whether the device has been properly tested and is ready for use.
In case of an alarm, the X-am 3500 alerts you with colorful alarm LEDs, a loud horn (100 dB), and a clearly palpable vibration. Optionally, four preset hazard symbols are available for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognize the type of hazard based purely on the symbol displayed.
Economical fleet management
Bumptest and calibration are carried out simply and quickly using the Draeger X-dock calibrating station. Its low test gas consumption keeps operating costs at a minimum.
Inductive charging protects against wear and tear
The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure simultaneously.
*Used by the FDNY*
The Draeger X-am 3500 was especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, NO2, and SO2. The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling.
Specially designed for use with a pump, optimized for clearance measurement
The Draeger X-am 3500 is equipped with a very powerful pump. It can be connected with hoses of up to 148 feet in length. A pump adapter makes it easy to switch between diffusion and pump mode at any time. This means the pump is only operated when you actually need it. That saves energy reduces wear and tear, and thereby extends the lifespan of the pump.
The performance of selected sensors has been verified by an external approval body within the scope of the measurement performance approval (EN 60079-29-1), for combustible gases and vapours for methane, propane and n-nonane, among others.
Handy and durable, the Drager X-am 3500 is intuitive to operate single-handedly using three function keys. The easy-to-read colour display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.
Clear signaling design
The signal system of the Draeger X-am 3500 is based on a clear colour code, in accordance with the requirements of the EN 60079-29-1, EN 45544-1 and EN 50104:
- Red light = Gas alarm
- Yellow light = Device-related alarm (ex. Low battery)
- Green light = Device is ready to use
The green glow of the D-light allows you to see from a distance whether the device has been properly tested and is ready for use.
In case of an alarm, the X-am 3500 alerts you with colorful alarm LEDs, a loud horn (100 dB), and a clearly palpable vibration. Optionally, four preset hazard symbols are available for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognize the type of hazard based purely on the symbol displayed.
Economical fleet management
Bumptest and calibration are carried out simply and quickly using the Draeger X-dock calibrating station. Its low test gas consumption keeps operating costs at a minimum.
Inductive charging protects against wear and tear
The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure simultaneously.
Specifications
- Dimensions: 7" x 3" x 1.7"
- Weight: Approx. 500 g
- Housing: Durable two-component housing
- Display: High-contrast color display
- Temperature: -4°F - 122°F
- Pressure: 700 to 1,300 hPa
- Relative Humidity: 10 to 90%
- Alarms: Visual - 3 LED 'red for gas alarms, yellow for device alarms. Acoustic - multi-tone, typically 100 dB at 30cm
- Ingress Protection Class: IP68
- Energy Supply: Lithium-ion battery, rechargeable, inductive charging
- Operating times: 24 hr with CatEx and 3 EC sensors, 120 hr with 3 EC sensors
- Charging Times: 4 Hours
- Start-up Times: 1 min
- Data Storage: 24 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 4 channels: approx 600 hours
- Pump Operation: Max hose length 147 ft.
- Approvals: ATEX, cCSAus, ANZEx, CE labeling, MED / DNV GL
