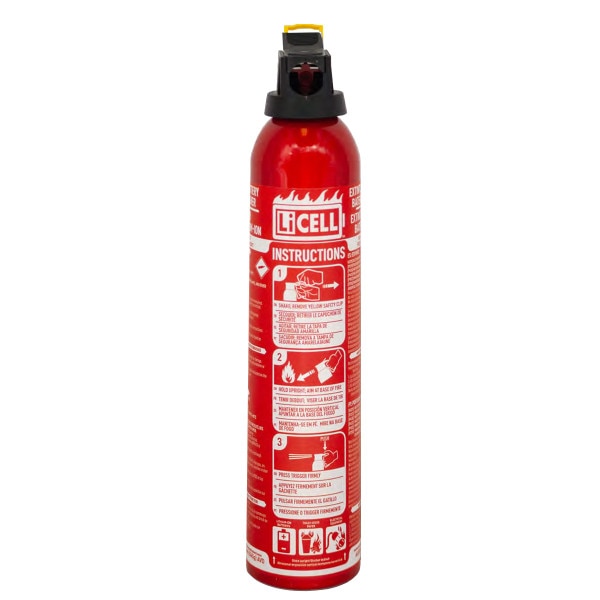

Li-Cell 500ml AVD Fire Extinguisher

SKU LI-AA500
(0) No Reviews yet
$69.99 to $419.99

Details

Li-Cell 500ml AVD Fire Extinguisher



LiCELL™ extinguishers are designed for portable lithium battery fire protection, utilizing Aqueous Vermiculite Dispersion (AVD) to provide highly effective fire suppresion that can handle the extreme temperature and thermal runaway challenges associated with lithium battery and metal fires.



AVD is an innovative, natural, mineral-based, and environmentally safe extinguishing agent consisting of an advanced formulation of chemically and physically invert vermiculite platelets and water.



The AVD agent delivers performance unachievable with conventional extinguishing agents by encapsulating the fire source with a non-flammable oxygen barrier while providing a cooling effect to the fire source.



AVD is nearly twice as effective as water on class A fires, and the agent's excellent thermal insulation properties provides the capability and versatility to apply it as a fire break to limit adjacent fire propagation.



Suitable for:

  • Mobile Devices (i.e., phones, tablet, MP3 players)
  • Personal Vaporizers and Electronic Cigarette Devices
  • Other small personal devices containing lithium batteries rated 60Wh or less



Safe & Effective on:

  • Lithium-ion Battery Fires (Li-ion)
  • Lithium Polymer Battery Fires (LiPo)
  • Class A - Common Combustibles Fires (i.e. paper, wood, cloth)
  • Class C - Electrical Equipment Fires (i.e. wiring, controls, devices)



Other Features:

  • May be applied as a fire break to limit fire propagation
  • Environmentally responsible with no global warming impact (Zero GWP)
  • Non-toxic to People, Animals, and Plants
  • Available with a Fire Safety Kit



Note: This canister is NOT refillable

Specifications

  • Model: AA500
  • Agent: AVD
  • Agent Volume: 10.14 oz (500ml)
  • Agent Mass: 1.2 lb (545g)
  • Unit Height: 11.8 in (300mm)
  • Unit Width: 3.75 in (95mm)
  • Cylinder Diameter: 2.6 in (65mm)
  • Cylinder Volume 26.8 cu in (794ml)
  • Operating Pressure: 156.6 PSI (10.8 BAR)
  • Propellant: Nitrogen (3% He)
  • Gross Weight (without clip): 1.52±0.3 lb (690±15g)
  • Min. Operating Temperature: 41ºF (5ºC)
  • Max. Operating Temperature: 122ºF (50ºC)
  • Discharge Time: ≤ 90s
  • Discharge Range: 6.6 ft (2.0m)
  • Total Package Weight: 3 lb (1.4kg)
  • Package Dimensions: 12 x 6 x 7 in (53 x 15 x 18 cm)
  • UN Number: 1044 Fire Extinguisher
  • Hazardous Weight: 1.2 lb (0.56kg)
  • SDS Number 123-679
