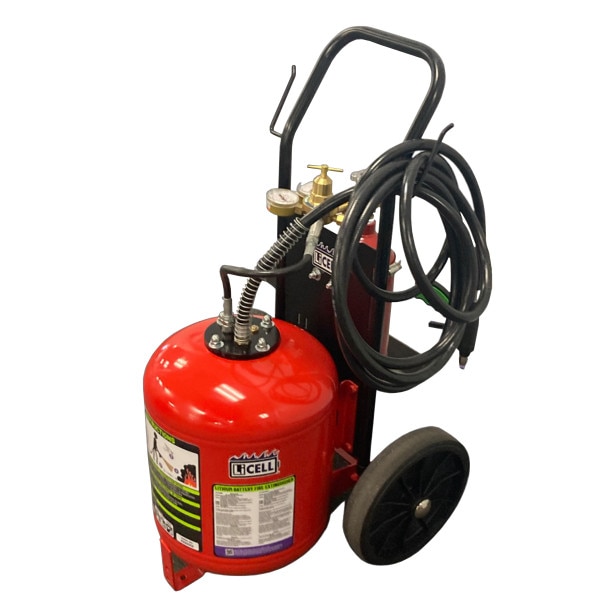

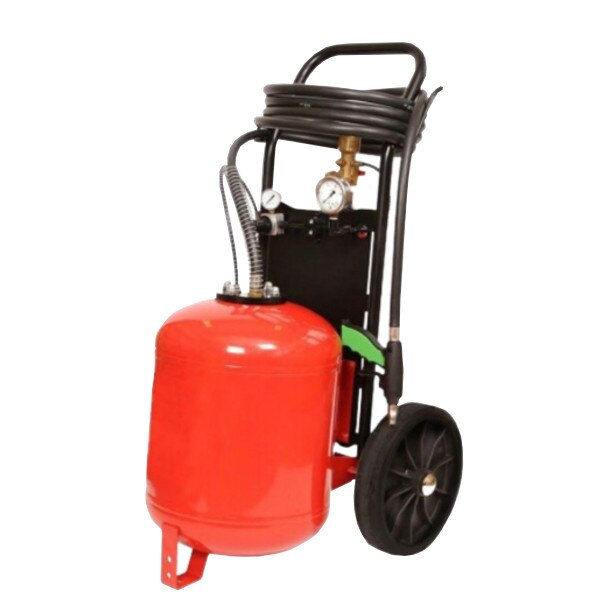

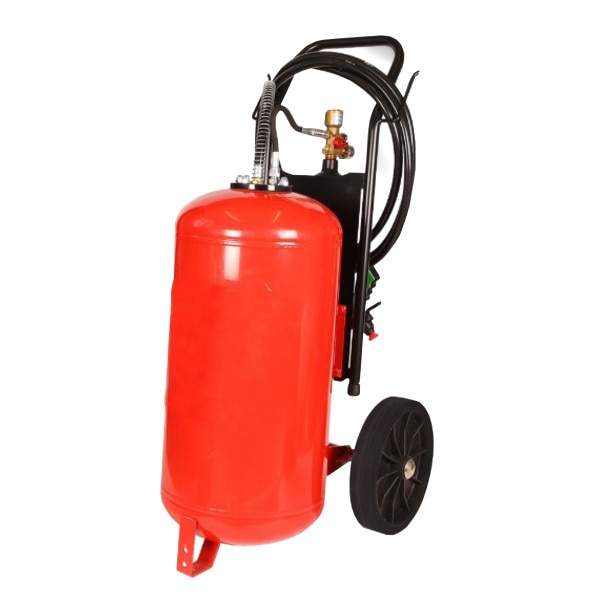

Li-Cell AW Series Wheeled Portable Extinguishers
Details
Li-Cell AW Series Wheeled Portable Extinguishers
LiCELL™ extinguishers are designed for portable lithium battery fire protection, utilizing Aqueous Vermiculite Dispersion (AVD) to provide highly effective fire suppression that can handle the extreme temperature and thermal runaway challenges associated with lithium battery and metal fires.
AVD is an innovative, natural, mineral-based, and environmentally safe extinguishing agent consisting of an advanced formulation of chemically and physically inert vermiculite platelets and water.
The AVD agent delivers performance unachievable with conventional extinguishing agents by encapsulating the fire source with a non-flammable oxygen barrier while providing a cooling effect to the fire source.
AVD is nearly twice as effective as water on class A fires, and the agent’s excellent thermal insulation properties provides the capability and versatility to apply it as a fire break to limit adjacent fire propagation.
Specifications
- Total Width: 22 in (558mm)
- Total Diameter Canister: 13.8 in (350mm)
- Typical Hose Length: 16.4 ft (5m)
- Operating Temperature: +41 to +140°F (+5°C to +60°C)
- Discharge Range (approx.): 16.4 ft (5m)
- Operating Pressure: 116 psi (8 bar)
- Supply Bottle (bar): 160 (2320 psi)
- Propellant: Nitrogen
- UN Number: 1066 Nitrogen
- Hazardous Weight: 2.2 lb (1 kg)
- SDS Number: 123-679
AW025:
- Agent Volume: 25 Liters (6.6 gal)
- Agent Weight (approx.): 60.6 lb (27.5kg)
- Total Weight of Unit: 121.3 lb (55kg)
- Total Height: 38.2 in ±.4 in (970 mm ±10 mm)
- Discharge Time (approx.): 3.5 minutes
- Total Package Weight: 175 lb
- Package Dimensions: 48" x 40" x 45"
AW050:
- Agent Volume: 50 Liters (13.2 gal)
- Agent Weight (approx.): 55 kg (121.3 lb)
- Total Weight of Unit: 100 kg (220.5 lb)
- Total Height: 42.9in±.4in (1090mm±10mm)
- Discharge Time (approx.): 7 minutes
- Total Package Weight: 275 lb
- Package Dimensions: 48" x 40" x 50"
