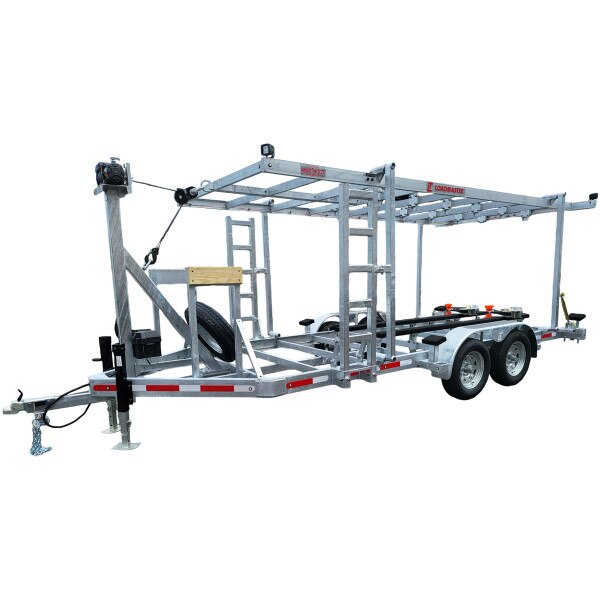

Loadmaster Hinging Stack Trailer

Specifications

• Gross vehicle weight rating 7,350 lbs. Maximum carry capacity approximately 5,000 lbs.
• Two 3,500 lbs. submersible torsion axles with sure lube bearing system
• 12,000 lbs. Warn electric winch a synthetic rope and a battery for raising and lowering the top trailer. The battery will charge with the battery for the lights and also the truck’s 12v.
• This trailer will be a maximum of 20’ rectangle frame plus 4’ A frame and a max LOA of 26’
• All wheel self-adjusting electric drum brakes
• Bottom frame constructed out of a 6” C-channel steel and the top frame constructed out of a 4” C-channel steel
• All grommet style LED lights and electrical connections are sealed and submersible
  • DOT compliant lighting on both the bottom and top trailer.
• Led pod style reverse lights (with protection cage)
• ¾” white under deck lights (ground effects lighting) under both levels
• Illumination package which includes: 2 – 3” x 3” Led pod lights and 2 – 33” Led light bars
• All accessory lights will have a switch on the trailer to turn them on and off
• 12 Volt power package which includes: deep cycle battery mounted in a 14” x 12” x 16” aluminum diamond plate lockable tool box with onboard maintainer and external plug socket
  • This battery will power accessory lights and will get a trickle charge from the truck’s 12V constant power
• Numerous stainless steel eye bolts for securing the boats to the trailer
• 18 tie down straps included
  • Two safety chains
  • Structural steel fenders painted to match the trailer with step plates on each side, covered with anti-skid w/ inner protection fender wells
• 2 fixed motor mounts for outboard motors
• 2” PVC roller at the back of each level with aluminum tubing inside for structure
• Tongue jack two 8,000 lbs. drop leg
• ST205/75R15 load range C trailer radial tires rated at 1,820 lbs per tire, with aluminum wheels
• 2 spare tires, aluminum wheels, and spare tire mounts
• Treated wood bunks covered with a black marine grade carpet set for the AB boat’s hull
• Composite (fake plywood) around the bunking to protect the boat’s hull and as well provide safer walking area
• Each boat will have an adjustable winch stand/bow stop with a manual winch
• The front supports from the bottom trailer to the top trailer are a structural ladder so you can climb up the ladder to the top frame
• PPG Delfleet polyurethane paint with epoxy primer, then a coat of paint, and the final coat is a combination of color and clear coat – color choices to be black or grey
