Petzl ROLLCLIP A H-Frame Pulley Carabiner
Details
Petzl ROLLCLIP A H-Frame Pulley Carabiner

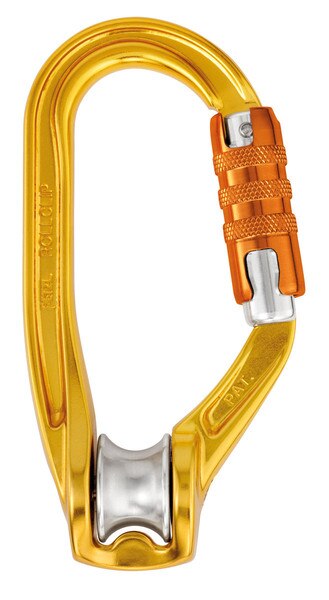

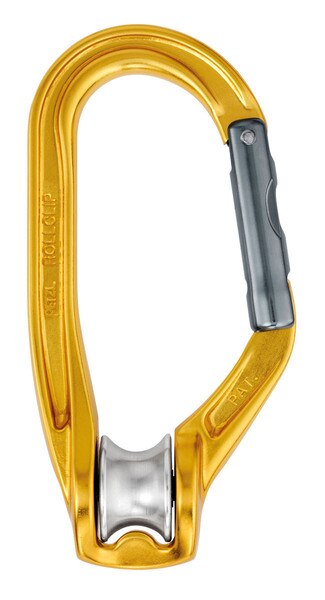

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system.
Features:
- Sheave mounted on sealed ball bearings for excellent efficiency
- Gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H profile of carabiner ensures an improved strength-to-weight ratio and protects markings from abrasion
- Available in versions with or without TRIACT-LOCK locking system
Specifications
- Material(s): Aluminum
- Rope Compatibility: 7 to 13mm
- Sheave diameter: 18mm
- Maximum working load: 2 x 2 = 4kN
- Efficiency: 85%
- Major axis strength: 20kN
- Minor axis strength: 8kN
- Open gate strength: 7kN
| References | P74 TL | P74 |
|---|---|---|
| Locking system | TRIACT-LOCK | Non-locking |
| Weight | 115 g | 105 g |
| Certification(s) | CE EN 362, EN 12275, EN 12278, UKCA, EAC | CE EN 12275, EN 12278, UKCA, EAC |
| Gate opening | 22 mm | 25 mm |
