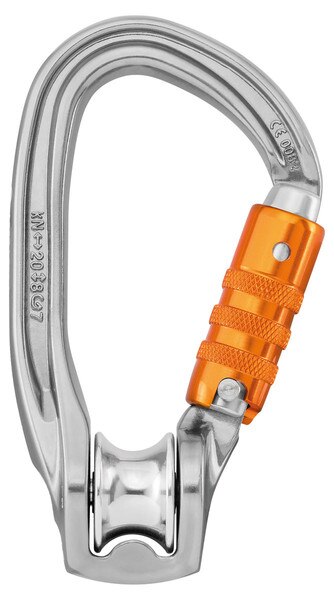

Petzl ROLLCLIP Z H-Frame Pulley Carabiner
Details
Petzl ROLLCLIP Z H-Frame Pulley Carabiner
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Features:
ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Features:
- Sheave mounted on sealed ball bearings for excellent efficiency
- Gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H cross-section of carabiner ensures an improved strength-to-weight ratio and protects markings from abrasion
- Two locking systems available
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): Aluminum
- Rope Compatibility: 7 to 13mm
- Sheave diameter: 18mm
- Maximum working load: 2 x 2 = 4kN
- Efficiency: 85%
- Major axis strength: 20kN
- Minor axis strength: 8kN
- Open gate strength: 7kN
| References | P75 TL | P75 SL |
|---|---|---|
| Locking system | TRIACT-LOCK | SCREW-LOCK |
| Weight | 110 g | 105 g |
| Certification(s) | CE EN 362, EN 12278, UKCA, EAC | CE EN 362, EN 12278, UKCA, EAC |
| Gate opening | 20 mm | 21 mm |
