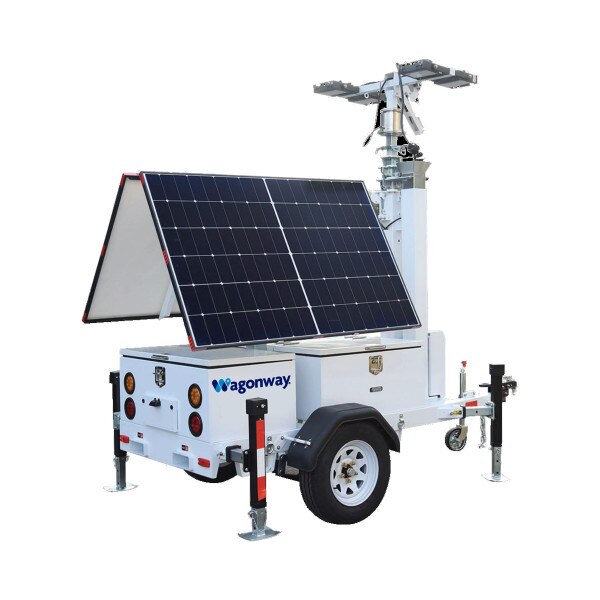

Wagonway Magnus WW-800MN Solar Tower

SKU WAG-WW-800MN
(0) No Reviews yet
$44,387.99

Details

Wagonway Magnus WW-800MN Solar Tower

The Wagonway Magnus WW-800MN solar tower is a highly efficient, solar-powered light tower designed for moderate to heavy lighting needs. Offering a sustainable alternative to diesel, gas, or electric generator-powered towers, it delivers silent, zero-emission illumination. Harnessing renewable energy from the sun, this portable lighting solution is perfect for a variety of applications. The Magnus WW-800MN solar tower combines power and efficiency to guarantee reliable performance while reducing environmental impact.

Features:

  • Zero Emission with no fuel and without incurring any electricity bills
  • Low maintenance with no engine, alternator, or fuel
  • Dusk to Dawn functions via photocell
  • Adjustable-tilt solar array for optimal position in catching the sun rays
  • Automatic and manual operating modes including power saving modes
  • Includes the option of being rechargeable with standard 120V charging
  • Dimmable LED lights can be individually aimed at different angles
  • Electric mast with Operating Safety System
  • Sealed, maintenance-free batteries
  • 200 Lumen/W, up to 90,000 Lumens


Product Applications:

Construction Sites: Our silent, zero-emission, off-grid solar light tower is revolutionizing the construction industry. It illuminates your workplace and provides security with no fuel

Emergency Disaster Relief: Whenever disasters occur, the ability to quickly source emergency light is critical to save lives and minimize damage

Traffic: These high-intensity, vehicle-mounted telescoping light towers provide the illumination needed to complete nighttime rescue, disaster, or investigative operations safely

Mining: Light towers are a vital ‘backbone’ piece of equipment in mining scenarios

Film & Television Industry: Portable & Mobile Solar Light Tower delivers zero-emission lighting with quiet operation perfect for film and television locations

Events: It has never been easier to stage an event than with the help of light towers to provide security and illumination

Utilities: Utility organizations can use Solar Light Towers for multiple purposes with no fuel


Contact us for customization and accessories.

Specifications

  • Coverage Area: 35,000 ft²
  • Light: 4 x 100W adjustable LED light fixtures
  • GEL Battery: 4 x 200 Ah DC12V
  • Battery Capacity: 9,600 Wh 80% DoC
  • Brightness: 76 hrs (25%, 38 hrs (50%), 25 hrs (75%), 19.2 hrs (100%)
  • Batteries: GEL (Charging Temp. -20°C/-4°F to 50°C/122°F)
  • Winch: Electric Lifting
  • Charging Time: 9 hours by Solar, 5 hours by AC
  • AC Charger: 2.5 kW / 2.5 kA, AC120V, external plug
  • Deployed Footprint: 143" x 65" (362 x 165cm), L x W
  • Weight Approx: 1,980 lbs (900kg)
  • 3 Year Warranty


Solar Panel:

  • Type: Mono Crystal Silicon
  • Quantity: 2
  • Wattage: 2 x 435, Rotate & Lift


Mast:

  • Height: 24 feet (7.3m) fully extended, lights operate at any height
  • Sections: Five (5)


Trailer:

  • Tire: 2 x 14" Rim
  • Tow Hitch: 2" Ball
  • Axle: Single Suspension
  • Outrigger: 4 x Manual Galvanized
