Wagonway Magnus WW-1200L Solar Tower

SKU WAG-WW-1200L
(0) No Reviews yet
$59,777.72

Details

Wagonway Magnus WW-1200L Solar Tower

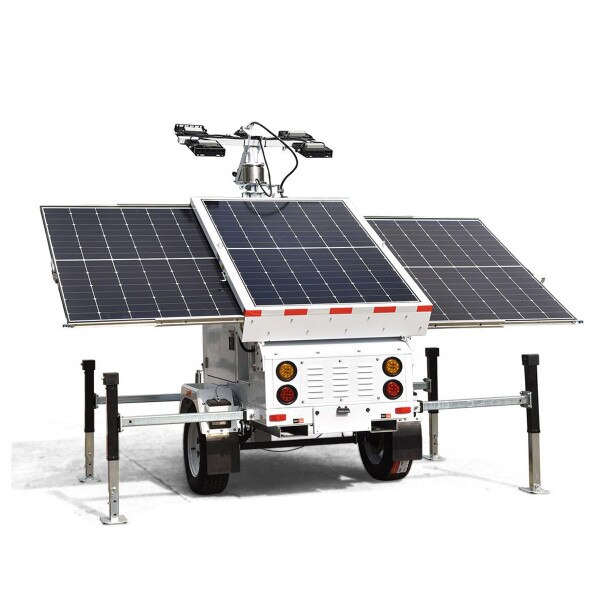

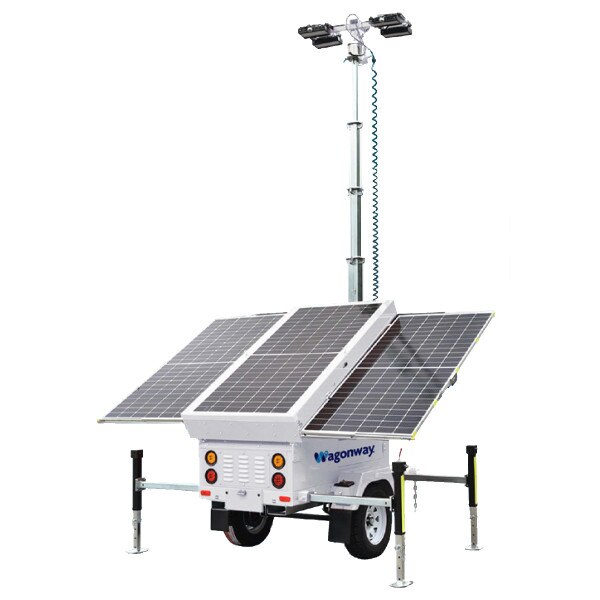

The Wagonway Magnus WW-1200L solar tower is a cutting-edge portable solar light tower designed for efficiency and sustainability. Powered entirely by solar energy, it delivers silent, zero-emission illumination, making it an eco-friendly alternative to traditional diesel or electric-powered light towers. The Magnus WW-1200L solar tower combines portability with powerful performance, providing reliable lighting wherever you need it for a variety of applications.

The Magnus WW-1200L Solar Light Tower provides a bright, energy efficient lighting solution powered by free renewable energy from the sun. It can be used in moderate to heavy lighting applications where a diesel, gas, or electric generator-powered light tower is needed.

For a secondary power source, any model can be connected to a 120V outlet for charging. When setting up on location, we use the Victron app, which has Bluetooth capability, allowing you to monitor battery levels remotely. Additionally, the WW-1200L tower is equipped with a winch system to prevent issues with the lifting device. Contact us for custom colors.


Features:

  • Zero Emission with no fuel and without incurring any electricity bills
  • Low maintenance with no engine, alternator, or fuel
  • Dusk to Dawn functions via photocell
  • Adjustable-tilt solar array for optimal position in catching the sun rays
  • Automatic and manual operating modes including power saving modes
  • Includes the option of being rechargeable with standard 120V charging
  • Dimmable LED lights can be individually aimed at different angles
  • Electric mast with Operating Safety System
  • Sealed, maintenance-free batteries
  • 200 Lumen/W, up to 90,000 Lumens


Product Applications:

Construction Sites: Our silent, zero-emission, off-grid solar light tower is revolutionizing the construction industry. It illuminates your workplace and provides security with no fuel

Emergency Disaster Relief: Whenever disasters occur, the ability to quickly source emergency light is critical to save lives and minimize damage

Traffic: These high-intensity, vehicle-mounted telescoping light towers provide the illumination needed to complete nighttime rescue, disaster, or investigative operations safely

Mining: Light towers are a vital ‘backbone’ piece of equipment in mining scenarios

Film & Television Industry: Portable & Mobile Solar Light Tower delivers zero-emission lighting with quiet operation perfect for film and television locations

Events: It has never been easier to stage an event than with the help of light towers to provide security and illumination

Utilities: Utility organizations can use Solar Light Towers for multiple purposes with no fuel


Contact us for customization and accessories.

Specifications

  • Solar Panel: 3 x 435 W
  • Panel Lifting: 30° - 45° Manual Lifting
  • GEL Battery: 6 x 200 Ah DC 12 V
  • Battery Capacity: 14,400 Wh 80% DoC
  • System Voltage: DC 24 V
  • Battery Charger: Yes
  • LED Lamp: 4 x 150 W, 90,000 Lms
  • Lighting Area (5 Lux): 2,310 m²
  • Rotation: 350° Electric
  • Tilt: 90° Electric
  • Controller: 60 MPPT
  • Mast & Height: 5 Sections 7m
  • Mast Lifting: Electric Winch
  • Trailer Standard: US
  • Hitch: 2" Ball / 3" Ring
  • Brake: Mechanical
  • Axle: Single
  • Tire: 15"
  • Outriggers: Optional
  • Lifting Ring: 4x
  • Forklift Holes: 2x
  • Working Temp: -25.6°F to 140°F (-35°C - 60°C)
  • Charging Time: 9.3 hours
  • Running Time: 19.2 hours
  • Dimensions (in.): 139.76 x 61.41 x 110.23
  • Weight (lbs.): 3,080
