Wagonway Magnus WW-400N Solar Tower

SKU WAG-WW-400N
(0) No Reviews yet
$23,222.12

Details

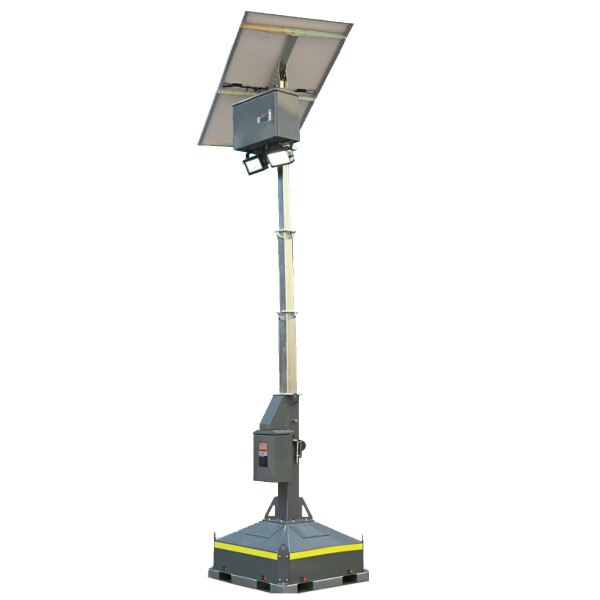

Wagonway Magnus WW-400N Solar Tower

The Magnus Line of Solar Light Towers offers a highly efficient alternative to traditional diesel, gas, or electric generator-powered light towers. Harnessing solar energy, Magnus Solar Light Towers provide a portable yet powerful lighting solution, delivering silent, zero-emission illumination.

The Magnus WW-400M Solar Light Tower provides a bright, energy-efficient lighting solution powered by free renewable energy from the sun. It can be used in light to moderate lighting applications where a diesel, gas, or electric generator-powered light tower is needed.

For a secondary power source, any model can be connected to a 120V outlet for charging. When setting up on location, we use the Victron app, which has Bluetooth capability, allowing you to monitor battery levels remotely. Additionally, the WW-400N tower is equipped with a winch system to prevent issues with the lifting device. Contact us for custom colors.

Features:

  • Zero Emission with no fuel and without incurring any electricity bills
  • Low maintenance with no engine, alternator, or fuel
  • Dusk to Dawn functions via photocell
  • Adjustable-tilt solar array for optimal position in catching the sun rays
  • Automatic and manual operating modes including power saving modes
  • Includes the option of being rechargeable with standard 120V charging
  • Dimmable LED lights can be individually aimed at different angles
  • Electric mast with Operating Safety System
  • Sealed, maintenance-free batteries
  • 200 Lumen/W, up to 90,000 Lumens


Product Applications:

Construction Sites: Our silent, zero-emission, off-grid solar light tower is revolutionizing the construction industry. It illuminates your workplace and provides security with no fuel

Emergency Disaster Relief: Whenever disasters occur, the ability to quickly source emergency light is critical to save lives and minimize damage

Traffic: These high-intensity, vehicle-mounted telescoping light towers provide the illumination needed to complete nighttime rescue, disaster, or investigative operations safely

Mining: Light towers are a vital ‘backbone’ piece of equipment in mining scenarios

Film & Television Industry: Portable & Mobile Solar Light Tower delivers zero-emission lighting with quiet operation perfect for film and television locations

Events: It has never been easier to stage an event than with the help of light towers to provide security and illumination

Utilities: Utility organizations can use Solar Light Towers for multiple purposes with no fuel


Contact us for customization and accessories

Specifications

  • Solar Panel: 1 x 435W
  • Panel Lifting: 0° - 90° Manual Lifting
  • LFP Battery: 1 x 200 Ah DC 12.8 V
  • Battery Capacity: 2,560 Wh 95% DoC
  • System Voltage: DC 12 V
  • Battery Charger: Optional
  • LED Lamp: 2 x 100W, 30,000Lms
  • Lighting Area 1,013 M²
  • Controller: 40 MPPT
  • Mast & Height: 4 Sections 4M
  • Mast Lifting: Manual Winch
  • Outriggers: Optional
  • Lifting Ring: 4x
  • Forklift Holes: 4x
  • Working Temp: -25.6°F to 140°F (-35°C - 60°C)
  • Charging Time: 5.9 hours
  • Running Time: 12.2 hours
  • Dimensions (in.): 39.37 x 39.37 x 114.17
  • Weight (lbs.): 880
