CMC Rescue ProSteel Carabiner
Details
CMC Rescue ProSteel Screw-Lock Carabiner
Strong and durable, CMC ProSteel Carabiners are classified to NFPA General Use and have a carbon steel body with a high breaking strength. Where noted, certain models are also certified to ANSI and include a reinforced gate for lateral stress. Designed with a keylock system, wide gate opening, glove-friendly sleeve, and burnished finish, CMC ProSteel Carabiners are built for heavy duty work in harsh environments, yet offer easy handling for everyday applications. Now available in gray with a new Zinc-Nickel treatment that provides double corrosion resistance from the prior black plating (test carried out in salt spray in accordance with UNI EN ISO 9227), greater scratch resistance, longer life, more uniform and modern finish, and less friction on cords and textile devices.
Features:
- Carbon steel carabiner with high tensile strength
- Wide gate opening for easy loading and unloading
- Keylock system prevents snagging on rope and bolts
- Sleeve is easy to open even wearing gloves
- Burnished finishing for greater visibility of markings
- Classified to NFPA General Use, select models also ANSI
Screw-Lock Features:
- Orients load distribution along the major axis
- Non ANSI gate is low profile for small attachment points
- Smooth, high-friction screw sleeve, good for gloves
Auto-Lock Features:
- Orients load distribution along the major axis
- Auto-lock sleeve, reinforced for lateral stress per ANSI
- Safety of 3 movements to open: lift, turn, and push
Screw-Lock Oval Features:
- Ideal for connection to structural anchors, lifelines, etc.
- Useful for mobile devices (pulleys, blockers, fall arresters)
- Non ANSI gate is low profile for small attachment points
- Smooth, high-friction screw sleeve, good for gloves
Auto-Lock Oval Features:
- Ideal for connection to structural anchors, lifelines, etc.
- Useful for mobile devices (pulleys, blockers, fall arresters)
- Auto-lock sleeve, reinforced for lateral stress per ANSI
- Safety of 3 movements to open: lift, turn, and push
Specifications

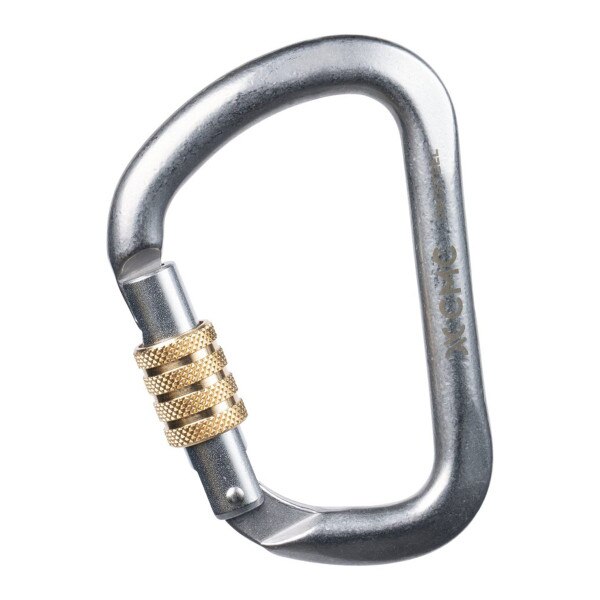

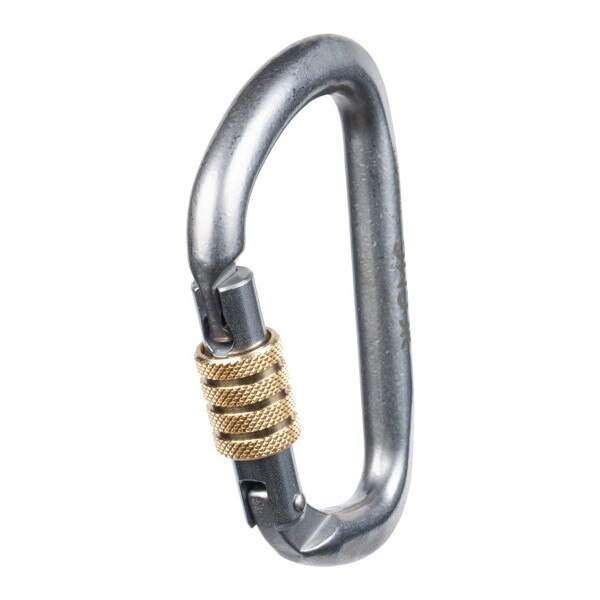

Screw-Lock:
- Color: Gray/Bronze
- Material: Carbon Steel
- Weight: 0.53 lbs (240 g)
- Dimensions: 4.5" x 3" (114 x 76.5 mm)
- Major Axis MBS: 48 kN (10,791 lbf)
- Minor Axis MBS: 16 kN (3,597 lbf)
- Gate Open MBS: 17 kN (3,822 lbf)
- Certification: NFPA General Use

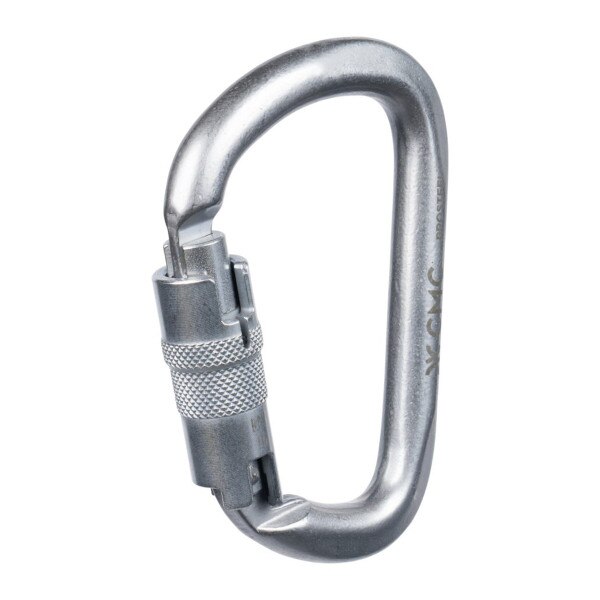

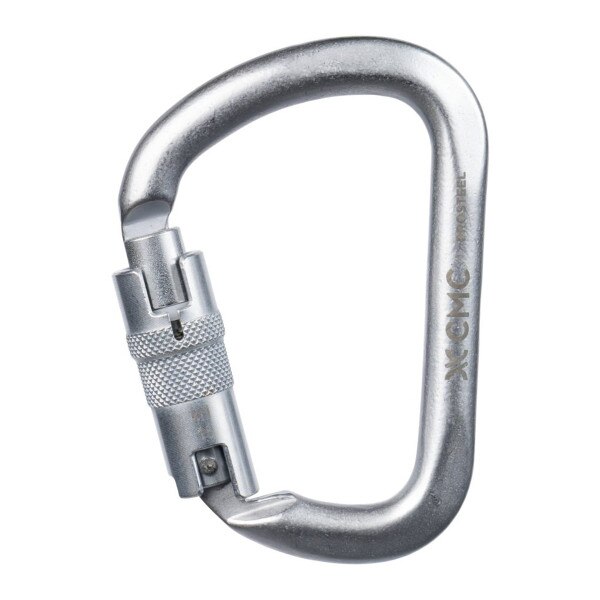

Auto-Lock:
- Color: Gray/Silver
- Material: Carbon Steel
- Weight: 0.58 lbs (265 g)
- Dimensions: 4.5" x 3" (114 x 76.5 mm)
- Major Axis MBS: 48 kN (10,791 lbf)
- Minor Axis MBS: 20 kN (4,496 lbf)
- Gate Open MBS: 17 kN (3,822 lbf)
- Certifications: NFPA General Use; ANSI Z359.12

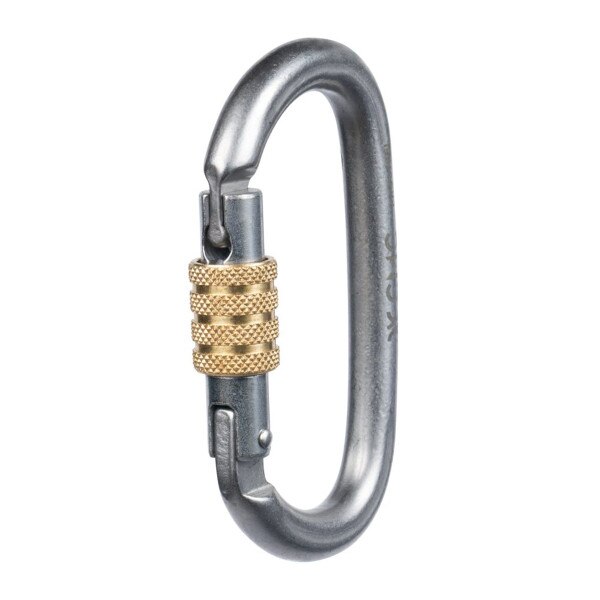

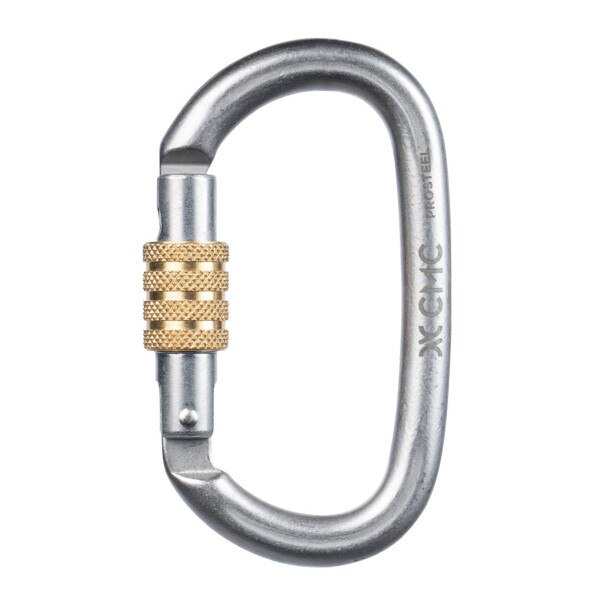

Screw-Lock Oval:
- Color: Gray/Bronze
- Material: Carbon Steel
- Weight: 0.45 lbs (205 g)
- Dimensions: 4.3" x 2.5" (114 x 76.5 mm)
- Major Axis MBS: 40 kN (8,892 lbf)
- Minor Axis MBS: 16 kN (3,597 lbf)
- Gate Open MBS: 12 kN (2,698 lbf)
- Certification: NFPA General Use

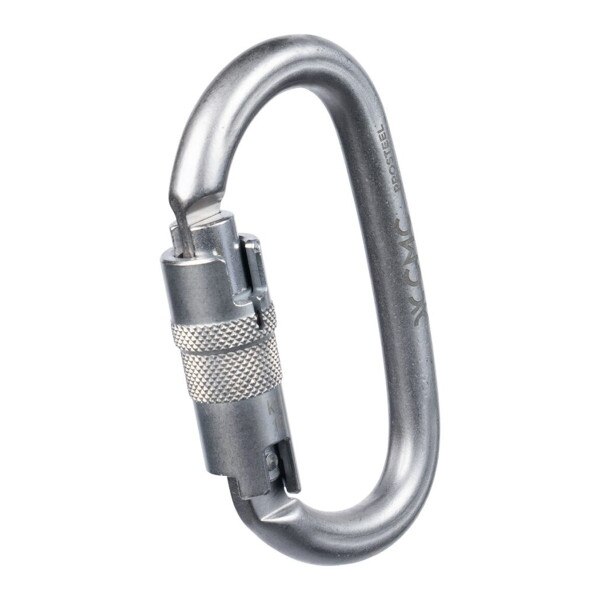

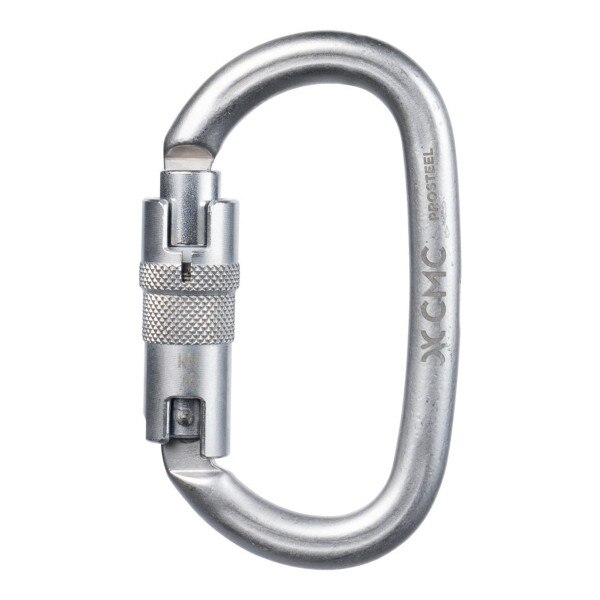

Auto-Lock Oval:
- Color: Gray/Silver
- Material: Carbon Steel
- Weight: 0.49 lbs (220 g)
- Dimensions: 4.3" x 2.5" (114 x 76.5 mm)
- Major Axis MBS: 40 kN (8,892 lbf)
- Minor Axis MBS: 20 kN (4,496 lbf)
- Gate Open MBS: 12 kN (2,698 lbf)
- Certifications: NFPA General Use; ANSI Z359.12
