Draeger Multi-Gas Detector
Details

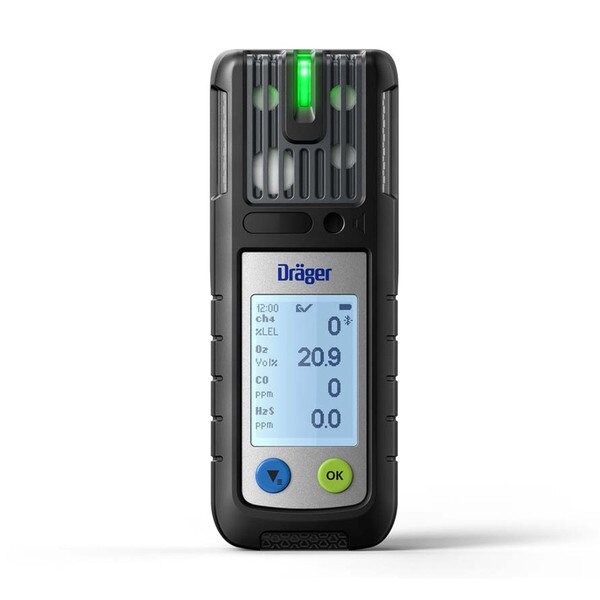

Draeger X-am 2800 Multi Gas Detector with Desktop Charger and Power Cord - EX, O2, CO, H2S
The Draeger X-am 2800 stands out as the ultimate portable multi-gas detector that offers unparalleled safety and efficiency. This robust device measures up to four gases and has a shock-resistant CatEx sensor, making it an ideal choice for personal monitoring. With the addition of the Dräger gas detection connect software, the X-am 2800 not only ensures live monitoring but also excels in powerful fleet management—all at a remarkably low cost of ownership. Each device includes a desktop charger and power cord, ensuring your multi-gas detector is always ready for action.
Cloud-Powered Data Analysis & Seamless Networking
The Draeger multi-gas detector revolutionizes safety and operational efficiency. Its networking capability allows for the easy transfer of data directly to a smartphone via Bluetooth or to the cloud through the X-dock test station, enabling secure access to data analysis.
Efficient Fleet Management Has Never Been Easier
The X-am 2800 simplifies fleet management, significantly reducing operating costs and saving time with its fast, low-gas-consumption tests. The automatic X-dock test station or mechanical bump test station streamlines processes further. Enjoy the benefits of our smart software solution for fleet management, convenient firmware updates, optional RFID transponder, and individual device color marking. With durable sensors and easily replaceable spare parts, including the power supply, the X-am 2800 will remain operational for years. Dräger offers a 4-year manufacturer’s warranty on the basic device, and it’s compatible with X-am 2500 accessories.
Customized Gas Monitoring for Every Need
Compact and lightweight, the Draeger multi-gas detector is designed for comfort and ease of use thanks to its large buttons. The clear display provides essential information, including gas readings, alarms, and time, while the green D-light indicates readiness. Enhanced safety features include four alarm thresholds on the oxygen channel, with real pre-alarms and main alarms for both falling and rising concentrations. Approved for use in Ex zone 0, it meets the rigorous IP 68 protection class standards.
Advanced Sensor Technology
The cutting-edge Ex sensor of the X-am 2800 calibrates within seconds, offering protection against shocks and the ability to measure a range of flammable vapors. The device’s flexible settings allow for the measurement of various gases, supported by Dräger’s innovative cross-calibration concept for precise and reliable readings. Meeting the new IEC standard 60079-29-1, the X-am 2800’s sensor technology sets new standards in safety and performance for portable multi-gas detectors.
Specifications
Weight: Typically 220 to 250g depending on sensor equipment
Housing: Robust 2-component housing
Display: Matrix display with high resolution
Ambient Conditions
Temperature: -20 to+50 °C (-4 to 122 F) (Measurement and storage), -40 to+50 °C (-40 to 122 F) (Use in potentially explosive atmospheres)
Pressure: 700 to 1300 mbar (Measurement), 800 to 1100 mbar (Use in potentially explosive atmospheres)
Relative Humidity: 10 to 95% r.h. , 5 ti 95% r.h. short term
Protection Class: IP68
Alarms
Visual: 3 LED "red" (gas alarms), 3 LED "yellow" (device alarm)
Audible: Multi-tone > 90 dB at 30 cm (12 in)
Additional Technical Specifications
- Energy Supply: NiMH battery (no dangerous goods: UN marking) required during transport), replaceable by user, rechargeable
- Bluetooth: Bluetooth 5.0
- Operating Times: Approx. 12 h (Bluetooth active), Approx. typical 100 h without Ex-sensor
- Charging Time: < 4 hr
- Ready For Measurement: < 60 s after start
- Data Logger: Application of an optimised data compression method with high accuracy and large storage capacity.
Approvals
- CSA approval: cCSAus
- Class I, Zone 0, AEx da ia IIC T4 Ga
- Class II, Div 1, Gr. E, F, G
Warranty
- CO/O2/H2S sensors have a 5 year warranty
- LEL sensor has a 3 year warranty.
