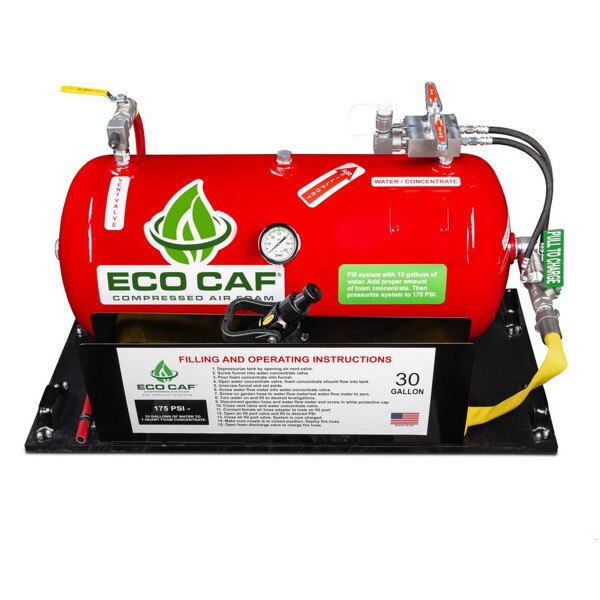

ECO CAF 30 Gallon Skid Unit Extinguisher

Specifications

• Solution Tank: steel construction- meets ASME standards
• DOT approved; epoxy powder coated inner lining
• Fill Port: Female GHT (foam funnel included)
• Plumbing Material: Brass and Stainless-Steel Fittings
• Expellant Type: Compressed Air
• 1" Pistol Grip Nozzle
• Foam Compatibility: Class A, B and AR Foam Concentrate
• Frame Construction: Poly Plastic Base
• Pressure Gauges: Span 3” liquid filled (1) Low Pressure 0-300 PSI
• Expansion Manifold: Stainless-Steel
• Discharge Hose - Hand Line: 1” Flat lay hose (1) 50’ Length
• Pressure Relief Valve: ¼” 200 PSI Pressure Vessel Capacity: 30 gal.
• Discharge Range: 75 Ft.
• Solution Capacity: 15 gal.
• Operational Pressure: 175 PSI
• CAF Output: 300 Gallons Finished Foam at 20:1 ratio
• Warranty: 1 Year

Dimensions:

• Length: 44”
• Width: 22”
• Height: 23”
• Weight empty: 158 lbs.
• Weight Full: 282 lbs.
